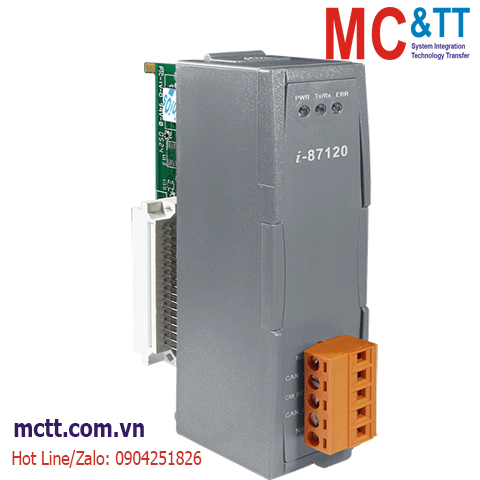

Module 1 cổng CAN ICP DAS I-87120-G CR
Feature
- One CAN port expansion for I-8000, iP-8000, ViewPAC-2000, WinPAC-8000, LinPAC-8000 and XPAC-8000-CE6
- 4096 records CAN message receive-buffer size
- 4096 records buffer size for the command from I-8000/ iP-8000/ ViewPAC-2000/ WinPAC-8000/ LinPAC-8000/ XPAC-8000-CE6 to I-87120
- Provide C/C++ function libraries to send and receive CAN messages
- Demos and utility are provided
- CAN Port Features:
- Support user-defined baud
- 2500 Vrms isolation
Introduction
CAN (Controller Area Network) is a serial bus control protocol especially suited to constrnct intelligent industry devices networks and build smart automatic control systems. It is popularly applied in the industrial automation, building automation, vehicle, marine, and embedded control network. In order to expand the CAN functions of ICPDAS products, I-87120 module is developed for this purpose. It is a kind of module, and need to be plugged into a host unit, such as I-8000 and iP-8000 series MCU (Main Control Unit), ViewPAC-2000, WinPAC-8000, LinPAC-8000 and XPAC-8000-CE6. I-87120 give a way to connect these ICPDAS host unit with CAN network. Owing to the features of I-8000, iP-8000, ViewPAC-2000, WinPAC-8000, LinPAC-8000 and XPAC-8000-CE6, these host units can be arranged to be a CAN converter, CAN slave device and CAN master device in a CAN network. The righr-hand-side figure shows the application architecture for I-87120 modules.
Application
- DeviceNet, CANopen, CAN J1939, SDS (System Wide Network) protocol application
- CAN bus communication application
- Industry automation
- Industrial Machinery
- Building Automation
- Food & Beverage
- Semiconductor Fabrication
- Control system
Specifications
| Software |
| Driver |
For I-8000/ iP-8000/ ViewPAC-2000/ WinPAC-8000/ LinPAC-8000/ XPAC-8000-CE6 |
| SDK |
TC/BC, GCC, VB.Net 2003, C#.Net 2003, VB.Net 2005, C#.Net 2005, eVC++ 4.0 |
| CPU Module |
| CPU |
80186, 80 MHz or compatible |
| EEPROM |
2 KB |
| Flash |
512 KB |
| SRAM |
512 KB |
| Real Time Clock |
Yes |
| LED Indicators |
| Status |
1 x Power
1 x CAN status
1 x Operating mode |
| CAN |
| Controller |
NXP SJA1000T with 16 MHz clock |
| Ports |
1 |
| Baud Rate |
10 k ~ 1 M bps |
| Isolation |
3000 VDC for DC-to-DC, 2500 Vrms for photo-couple |
| Terminal Resistor |
Jumper for 120 Ω terminal resistor |
| Specification |
ISO-11898-2, CAN 2.0A and CAN 2.0B |
| Mechanical |
| Dimensions (mm) |
31 x 91 x 115 (W x L x H) |
| Environment |
| Operating Temperature |
-25 ~ +75 °C |
| Storage Temperature |
-30 ~ +80 °C |
| Humidity |
10 ~ 90% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| I-87120-G |
1-port Programmable CAN Module (Serial Bus Type) (RoHS) |
