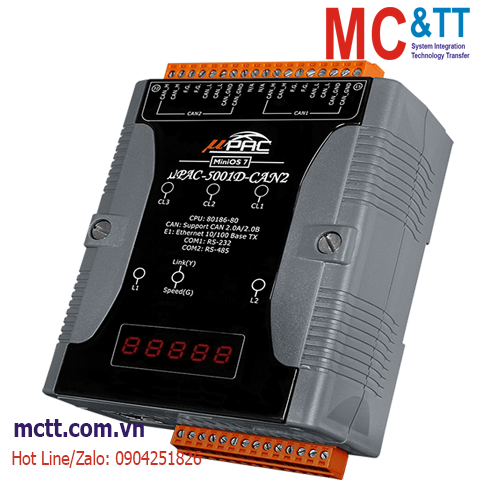

Bộ lập trình điều khiển 2 cổng CAN ICP DAS uPAC-5001D-CAN2 CR

Mã sản phẩm: uPAC-5001D-CAN2

Thương hiệu: ICP DAS

Tình trạng:

2-port CAN Programmable Controller

Liên hệ

Chính sách cửa hàng

Khi mua hàng tại website của chúng tôi, quý khách sẽ được:

Thanh toán dễ dàng và bảo mật

Miễn phí vận chuyển với đơn hàng từ 10.000.000đ

Bảo hành 1 năm do lỗi nhà sản xuất

Cam kết 100% chính hãng

GIẢI PHÁP

Mô tả

Mô tả

Bộ lập trình điều khiển 2 cổng CAN ICP DAS uPAC-5001D-CAN2 CR

Feature

Compatible with CAN specification 2.0 parts A and B
Programmable transfer rate up to 1 Mbps
Jumper select 120Ω terminal resistor for CAN channel
Supports a variety of TCP/IP features, including TCP, UDP, IP, ICMP, ARP
Supports TCP/IP, Modbus, CAN library.
Supports various storage media, 512 KB Flash, 16 KB EEPROM, .microSD
64-bit hardware unique serial number inside
COM driver support interrupt & 1KB QUEUE Input & Output buffer
COM port: COM1, COM2
Build-in WDT
Built-in RTC, NVRAM, EEPROM
Built-in self-tuner ASIC controller on RS-485 port
Built-in ICP DAS's MiniOS7 and it is upgradable.
Redundant Power Inputs
Program download port: COM1 or Ethernet Port

Introduction

The uPAC-5001D-CAN2 is palm size PACs (Programmable Automation Controller). With abundant and various peripherals and communication ports, the uPAC-5001D-CAN2 can integrate different communication interface, like CAN bus, RS-232, RS-485, Ethernet and so on. In order to increase the modules openness and applications flexibility, the uPAC-5001D-CAN2 provides DOS-like real-time single-task operation system for adapting to all kinds of needs. Users can develop application programs via C/C++ compiler. In respect of application development, the uPAC-5001D-CAN2 also provides various libraries and demo programs about the peripheral components. Users may be confused how to use those abundant libraries. For this purpose, the uPAC-5001D-CAN2 provides demo programs about libraries. When users need to use various peripheral like communication ports, watch dog, real-time clock (RTC), seven-segment display, reading/accessing into flash, EEPROM, microSD, even using 64-bit hardware unique series number to protect the development of application software, they can be completed easily and quickly to meet all kinds of needs for application program development by revising and combining these sample programs. In order to work under harsh environment, the uPAC-5001D-CAN2 was designed with low power consumption and fanless products. Besides, it adds all manner of anti-jamming protection components on circuit design and meets requirements of the wide operating temperature and wide operating voltage. Basis of all features which were described previously, the uPAC-5001D-CAN2 is an ideal for data collection which is applied to integrate all kinds of communication interface or as a data processing center. It is also designed to convert different protocol network such as gateway or bridge devices.

Application

CAN bus communication application
Industry automation
Auto detecting CANopen slave devices
IO monitor
High speed data acquisition system
Process monitor and control
Factory automation
Laboratory automation
Communication switching

Specifications

CPU Module
CPU	80186 or compatible (16-bit and 80 MHz)
64-bit Hardware Serial Number	Yes, for Software Copy Protection
EEPROM	16KB
Flash	512 KB; Erase unit is one sector (64 K bytes); 100,000 erase/write cycles
SRAM	512 KB
Storage Expansion	Yes, can support 1 or 2 GB microSD
Real Time Clock	Yes
Watchdog Timer	Yes( 0.8 second)

LED Indicators
Status	5 x Programmable

COM Ports
Ports	1x RS-232 (Download Port) 1 x RS-485 (with internal self-tuner ASIC)

Ethernet
Ports	RJ-45 x 1, 10/100 Base-TX (Auto-negotiating, Auto MDI/MDI-X, LED indicators)

CAN
Controller	NXP SJA1000T with 16 MHz clock frequency
Ports	2
Baud Rate	5 k ~ 1 M bps
Terminal Resistor	Jumper for the 120 Ω terminal resistor
Specification	ISO 11898-2, CAN 2.0A and CAN 2.0B
