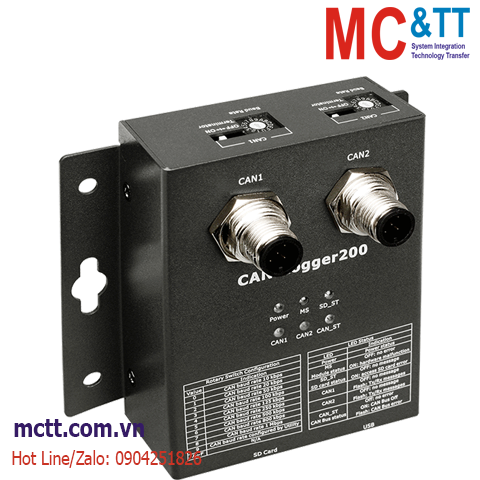

Bộ xử lý và lưu trữ dữ liệu Data Logger 2 cổng CAN Bus ICP DAS CAN-Logger200 CR
Feature
- Compatible with CAN specification 2.0 parts A and B
- 2500 Vrms photocoupler isolation on the CAN side
- Full compatible with the ISO 11898-2 standard
- Supports CAN bus acceptance filter configuration
- Max. CAN data flow for a single channel is 15000 fps
- Programmable CAN bus baud rate from 10 kbps ~ 1Mbps
- USB 2.0 High Speed Compatibility
- Supports 4 to 32 GB SDHC type flash for saving CAN messages
- Built-in jumper for the 120 Ω terminal resistor of the CAN side
- Power by the USB port or CAN port
- 3 kV galvanic isolation for the CAN port
- Provides a configuration utility that can be used to transmit/receive CAN messages
Introduction
The CAN-Logger200 are high-performance intelligent CAN bus data logger device with one/two CAN port that can help to make data collection and to process on a CAN bus network easier and quicker. The powerful CPU of the CAN-Logger devices provide the accurately time-stamp for each CAN message and supports storage media like SD or SDHC type flash for saving these CAN messages that is useful to analysis and diagnostic the CAN Bus network. In order to enhance the portability of the CAN-Logger200, this module is powered by the USB interface or M12 connectors of CAN bus interface. The CAN-Logger devices use the standard USB HID driver of the Windows system.
Application
- Control System
- Building Automation
- Factory Automation
- Distributed data acquisition
Specifications
| Data Logger |
| Trigger |
Log continuously |
| Time Stamp |
10 us |
| Storage Media |
SDHC type flash – support 4 to 32 GB |
| File Format |
Binary |
| Configuration |
Utility tool |
| LED Indicators |
| Status |
1 x Power
1 x Module status
1 x SD status
3 x CAN status |
| USB |
| Specification |
USB 2.0 High Speed |
| Transfer Speed |
480 Mbit/s, High Speed mode |
| Connector |
1 x USB (Type B) (Utility port) |
| Driver |
Built-in Windows 7/8.1/10 |
| CAN |
| Ports |
2 |
| Baud Rate |
10 k ~ 1 M bps |
| Isolation |
3000 VDC for DC-to-DC, 2500 Vrms for photocoupler |
| Terminal Resistor |
DIP switch for the 120 Ω terminal resistor |
| Specification |
ISO-11898-2, CAN 2.0A and CAN 2.0B |
| Filter |
Yes |
| Pin Assignment |
2 x 5-Pin male M12 |
| Data Flow |
15000 fps for Rx |
| Power |
| Input Range |
+10 VDC ~ +30 VDC or USB power delivery |
| Consumption |
2.5 W |
| Mechanical |
| Casing |
Metal |
| Dimensions (mm) |
102 x 102 x 44 (W x L x H) |
| Installation |
Wall Mount |
| Environment |
| Operating Temperature |
-25 ~ +75 °C |
| Storage Temperature |
-30 ~ +80 °C |
| Humidity |
10 ~ 90% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| CAN-Logger200 CR |
2-port CAN Bus Data Logger Device (RoHS) |
