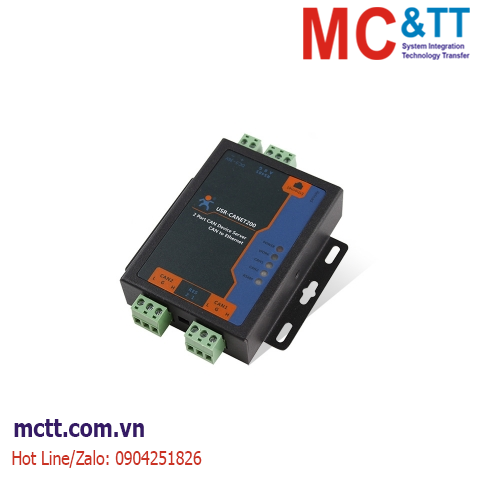

USR-CANET200 là bộ chuyển đổi tín hiệu CAN sang Ethernet/ RS-485 của hãng USR.
CANET200 hỗ trợ hai giao diện CAN, một giao diện Ethernet và ngăn xếp giao thức TCP/IP. Người dùng có thể thực hiện kết nối giữa mạng CAN-bus và mạng Ethernet để mở rộng mạng CAN-bus bằng CANET200.
CANET200 cũng có một cổng nối tiếp RS485 độc lập với CAN và có thể thực hiện truyền dữ liệu giữa thiết bị nối tiếp và Ethernet.
Tính năng
- All-around hardware protection. CAN, serial port, Ethernet interface and power interface all have high-level protection to adapt harsh industrial environment.
- 10/100Mbps Ethernet interface. Support Auto-MDI/MDIX.
- Support CAN ID filtering function, various filtering function make using module more secure.
- One port supports two sockets.
- CAN baud rate ranges from 10K~1Mbps; support BASIC and LOOPBACK work modes.
- Support static IP function or DHCP function; support searching device in network by UDP broadcast.
- Support restoring default settings by Reload button.
- RJ45 has Link/Data LED; Ethernet interface has external isolation transformer and supports 1.5KV electromagnetic isolation.
- Support upgrading firmware by network.
- Support modifying Web Server port(Default is 80).
- Support Keep-Alive function.
- Support CAN relay function.
- Support switching between CAN and RS485.
Thông số kỹ thuật
| Hardware parameter |
|
Working voltage |
DC 5~36V |
|
Working current |
Average 26mA@36V
Average 56mA@12V
Average 124mA@5V |
|
Power supply protection |
Power supply surge: Level three.
Group pulse: Level three. |
|
Ethernet interface specification |
RJ45, 10/100Mbps, support Auto-MDI/MDIX. |
|
Ethernet interface protection |
1.5KV electromagnetic isolation |
|
Serial port |
RS485 |
|
Serial port baud rate |
600~115.2K(bps) |
|
CAN baud rate |
10K~1M(bps) |
|
CAN work mode |
Basic, loopback |
|
CAN protection |
Power supply isolation, signal isolation |
| Software parameter |
|
Network protocol |
IPV4, TCP/UDP |
|
How to get IP |
Static IP, DHCP |
|
Configuration method |
Web Server, serial/network AT command |
|
TCP Server connection |
Support at most four TCP Client connections; serial server only support one Client connection |
|
CAN receiving capability |
8000 frames every second(Every way) |
|
CAN transmitting capability |
8000 frames every second(Every way) |
|
Network cache |
Transmitting: 16K bytes; receiving: 16K bytes |
|
CAN cache |
Transmitting: two hundred complete data packets(Every way); receiving: two hundred complete data packets(Every way) |
|
Serial cache |
Transmitting: 2K bytes; receiving: 2K bytes |
|
Flow control |
Don’t support |
|
Heartbeat packet |
CAN: Support user editable heartbeat packet(CAN data packet that conforms to transparent transmission protocol).
Serial port: Support user editable heartbeat packet |
|
Identity packet |
CAN: Support user editable, MAC, USR Cloud identity packet.
Serial port: Support user editable, MAC, USR Cloud identity packet |
|
Average transmission delay |
<20 ms |
| Other parameter |
|
Working temperature |
-40~85℃(Industrial level) |
|
Storage temperature |
-40~105℃ |
|
Dimensions |
96.5*94*25mm(L*W*H) |
|
Working humidity |
5~95%RH |
|
Storage humidity |
5~95%RH |
Download
USR-CANET200-Datasheet
USR-CANET200-User-Manual
Thông tin đặt hàng
|
USR-CANET200 |
CAN to Ethernet /RS485 gateway |
