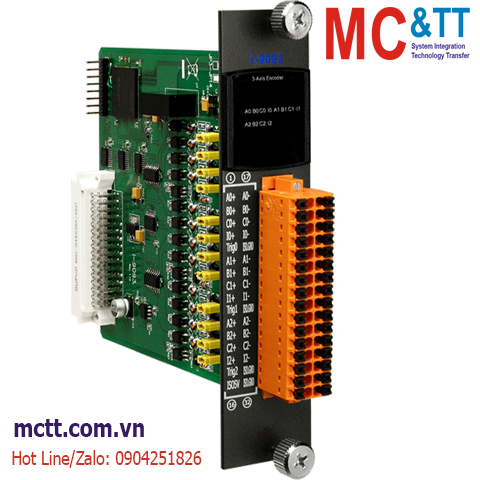

Module 3 trục bộ đếm tốc độ cao HSC ICP DAS I-9093 CR
Feature
• 3-axis, 32-bit Encoder Counter
• Maximum Counting Rate: 6 MHz
• Encoder Input: A, B, C Differential
• Encoder Mode: Quadrant, CW/CCW, PULSE/DIR
• Compare Trigger Output
• Selectable Reset/Latch Signal Inputs
• 4 kV ESD Protection
• Wide Operating Temperature Range: -25 to +75°C
Introduction
I-9093 includes 3-axis encoder with compare trigger output function. It can generate a periodic trigger signal when the motor reaches a specified position. The specified position is called a breakpoint and is similar to a switch that is triggered after the motor passes a certain position. To use the compare trigger output function, you have to set an initial point (P) and a trigger period of the following points (D). The trigger signal is an I/O line that can be used to fire another device. For example, when a motor reaches a certain position, the trigger signal can be used to fire the shutter of a camera to capture an image for the defect detection. All operations of position compare and trigger pulse output are automatically done by the hardware circuit. There is no software calculation effort when the system is operating. I-9093 makes the system design simpler, and significantly increases the system performance.
https://i.ibb.co/hRFKjdr/I-9093-Introduction.png
Application
• Data acquisition operation
• Optical inspection line-scan systems
• Image capture
• Position Measure
Specifications
| Isolation |
| Intra-module Isolation |
3000 VDC |
| EMS Protection |
| ESD (IEC 61000-4-2) |
±4 kV Contact for each Terminal
±8 kV Air for Random Point |
| LED Indicators |
| Status |
1 x Power and Communication
12 x Status |
| Encoder Input |
| No. of Axes |
3 |
| Mode |
Quadrant , CW/CCW , Pulse/Dir |
| Resolution |
32-bit |
| Response Speed |
Quadrant: 2 MHz Max.
CW/CCW: 6 MHz
Pulse/Dir: 6 MHz |
| Programmable Digital Filter |
1 ~ 250 μs |
| Photo-isolation |
2500 VDC |
| Input Level |
ON Voltage Level: +3.5 VDC ~ +5 VDC Or 10 VDC ~ 24 VDC (Jumper Select)
OFF Voltage Level: +0.8 VDC Max. |
| Compare Trigger Output |
| Channels |
3 |
| Load Voltage |
5 ~ 48 V |
| Max. Load Current |
100 mA |
| Trigger Pulse Width |
10 μs ~ 128 μs |
| External Latch Input |
| Channels |
3 |
| Input Level |
ON Voltage Level: +3.5 VDC ~ +5 VDC or +10 VDC ~ +24 VDC (Jumper Select)
OFF Voltage Level: +0.8 VDC Max. |
| Power |
| Consumption |
2 W Max. |
| Mechanical |
| Dimensions (mm) |
31 x 134 x 144 (W x L x H) |
| Environment |
| Operating Temperature |
-25 ~ +75 °C |
| Storage Temperature |
-40 ~ +85 °C |
| Humidity |
10 ~ 90% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| I-9093 CR |
3-axis High-speed Encoder Module with Compare Trigger Output (RoHS) |
