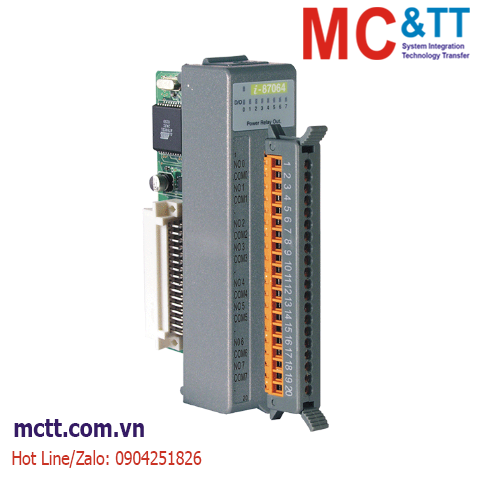

Module 8 kênh đầu ra Relay ICP DAS I-87064-G CR
I-87064-G CR đã dừng sản xuất và được thay thế bằng I-87064W-G CR
EOL Notification
Feature
• 8-channel Power Relay Output
• Form A Power Relay Output
• 3000 VDC Intra-module Isolation
• Configurable Power-on Value
• Configurable Safe Value
Introduction
The I-87064 module provides 8 Form A Relay Output channels, and is an ideal solution for high-power applications. The I-87064 includes 8 LED indicators that can be used to monitor the status of the Relay Output channels, and options are available for configuring power-on and safe values. 4 kV ESD protection and 3000 VDC intra-module isolation are also provided to enhance the noise protection capabilities of the module in harsh industrial environments.
Application
• Building Automation
• Factory Automation
• Machine Automation
• Remote Maintenance
• Remote Diagnosis
• Testing Equipment
Specifications
| CPU Module |
| Watchdog Timer |
Yes, Module (1.6 Seconds), Communication (Programmable) |
| Isolation |
| Intra-module Isolation |
3000 VDC |
| LED Indicators |
| Status |
1 x Power and Communication
8 x I/O |
| Relay Output |
| Channels |
8 (Form A) |
| Type |
Power Relay |
| Contact Rating |
Form A:
5 A @ 250 VAC (Resistive Load)
5 A @ 30 VDC (Resistive Load) |
| Operate Time |
6 ms (Max.) |
| Release Time |
3 ms (Max.) |
| Electrical Endurance |
1 x 10^5 ops. |
| Mechanical Endurance |
2 x 10^7 ops. |
| Power on Value |
Yes |
| Safe Value |
Yes |
| COM Ports |
| Baud Rate |
115200 bps |
| Data Format |
N, 8, 1 |
| Protocol |
DCON |
| Power |
| Consumption |
2.4 W Max. |
| Mechanical |
| Dimensions (mm) |
31 x 116 x 88 (W x L x H) |
| Environment |
| Operating Temperature |
-25 ~ +75 °C |
| Storage Temperature |
-30 ~ +75 °C |
| Humidity |
5 ~ 95% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| I-87064-G CR |
8-ch Form A Power Relay Module (5A Rating Current) (Gray Cover) (RoHS) |
