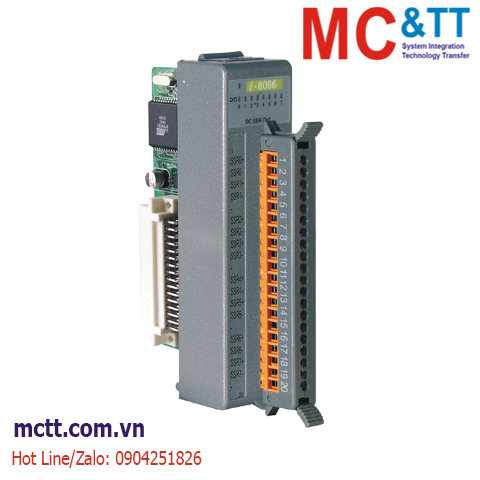

Module 8 kênh đầu ra SSR-DC ICP DAS I-8066-G CR
I-8066-G CR đã dừng sản xuất
EOL Notification
Feature
• 8-channel DC SSR Output
• Form A DC Solid State Relay Output
• ±4 kV ESD Protection
Introduction
The I-8066 module provides 8 DC Solid State Relay (SSR) Output channels. In comparison to electromechanical relays, SSR technology provides a faster response time and greater electrical endurance. The integration of DC SSR technology also eliminates the potential for arcing, bouncing, and switching noise.
Application
• Building Automation
• Factory Automation
• Machine Automation
• Remote Maintenance
• Remote Diagnosis
• Testing Equipment
Specifications
| Isolation |
| Intra-module Isolation |
500 VDC |
| EMS Protection |
| ESD (IEC 61000-4-2) |
± 4 kV Contact for Each Terminal |
| LED Indicators |
| Status |
1 x Power and Communication
8 x I/O |
| Relay Output |
| Channels |
8 (Form A, Normal Open) |
| Type |
DC SSR |
| Contact Rating |
1 A @ 25 ℃ (3 ~ 30 VDC)
0.8 A @ 40 ℃ (3 ~ 30 VDC) |
| Operate Time |
1 ms Max. |
| Power |
| Consumption |
0.8 W Max. |
| Mechanical |
| Dimensions (mm) |
31 x 116 x 88 (W x L x H) |
| Environment |
| Operating Temperature |
-25 ~ +75 °C |
| Storage Temperature |
-40 ~ +85 °C |
| Humidity |
10 ~ 90% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| I-8066-G CR |
8-ch Form A SSR-DC Output Module (Gray Cover) (RoHS) |
