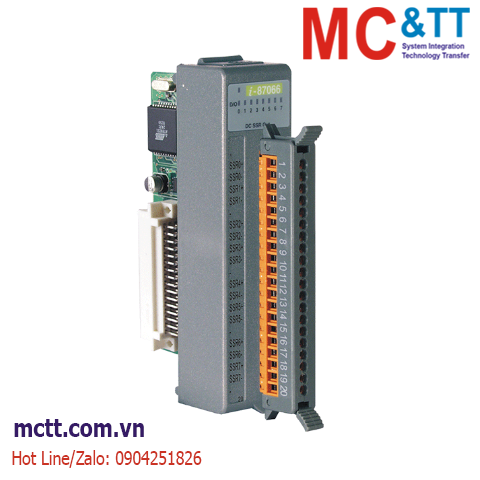

Module 8 kênh đầu ra DC-type SSR Relay ICP DAS I-87066-G CR

Chia sẻ:
Mã sản phẩm: I-87066-G
Thương hiệu: ICP DAS
Tình trạng:

8-ch DC-type SSR Relay Module

Liên hệ
Mô tả

Module 8 kênh đầu ra DC-type SSR Relay ICP DAS I-87066-G CR

I-87066-G CR đã dừng sản xuất và được thay thế bằng I-87066W-G CR

EOL Notification

Feature

• 8-channel DC SSR Output
• Form A DC Solid State Relay Output
• Fast Operating/Release Time
• No Arcing, Bouncing, or Switching Noise
• 3000 VDC Intra-module Isolation
• Configurable Power-on Value
• Configurable Safe Value
• Unlimited Relay Lifetime
• 4 kV ESD Protection

Introduction

The I-87066 module provides 8 DC Solid State Relay (SSR) Output channels. In comparison to electromechanical relays, SSR technology provides a faster response time and greater electrical endurance. The integration of DC SSR technology also eliminates the potential for arcing, bouncing, and switching noise. The I-87066 includes 8 LED indicators that can be used to monitor the status of the SSR output, and options are available for configuring power-on and safe values. 4 kV ESD protection and 3000 VDC intra-module isolation are also provided to enhance noise protection capabilities of the module in harsh industrial environments.

Application

• Building Automation
• Factory Automation
• Machine Automation
• Remote Maintenance
• Remote Diagnosis
• Testing Equipment

Specifications

CPU Module
Watchdog Timer Yes, Module (1.6 Seconds), Communication (Programmable)
Isolation
Intra-module Isolation 3000 VDC
LED Indicators
Status 1 x Power and Communication
8 x I/O
Relay Output
Channels 8 (Form A)
Type Solid State Relay (DC)
Contact Rating Operating Voltage Range: +3 ~ +30 VDC
Max. Load Current: 1 A
Leakage Current: 0.1 mA
Operate Time 1 ms (Min.)
Release Time 1 ms (Min.)
Electrical Endurance Long Life, No Arcing, No Bounce, No Switching Noise
Power on Value Yes
Safe Value Yes
COM Ports
Baud Rate 115200 bps
Data Format N, 8, 1
Protocol DCON
Power
Consumption 0.7 W Max.
Mechanical
Dimensions (mm) 31 x 116 x 88 (W x L x H)
Environment
Operating Temperature -25 ~ +75 °C
Storage Temperature -30 ~ +75 °C
Humidity 5 ~ 95% RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

I-87066-G CR 8-ch DC-type SSR Relay Module (Gray Cover) (RoHS)
