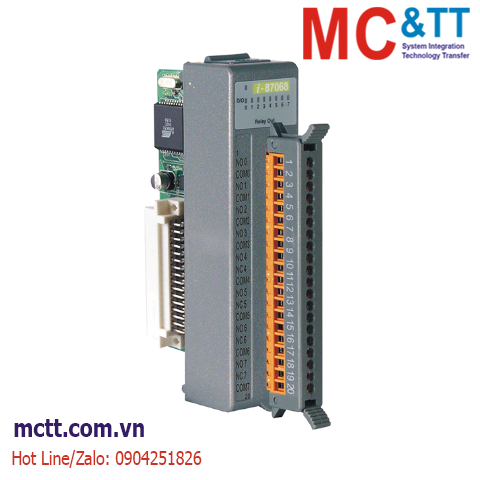

Module 8 kênh đầu ra Relay ICP DAS I-87068-G CR

Chia sẻ:
Mã sản phẩm: I-87068-G
Thương hiệu: ICP DAS
Tình trạng:

8-ch Power Relay Module (5A Rating Current)

Liên hệ
Mô tả

Module 8 kênh đầu ra Relay ICP DAS I-87068-G CR

I-87068-G CR đã dừng sản xuất và được thay thế bằng I-87068W-G CR

EOL Notification

Feature

• Form A & Form C Relay Output
• Dual Watchdog
• Configurable Power-on Settings
• Configurable Safe Value Settings
• 4 kV ESD Protection

Introduction

The I-87068 provides 4 Form A power relay output channels and 4 Form C power relay output channels. The I-87068 include 8 LED indicators for monitoring the relay output status and provide options for configuring power-on and safe digital output values. 4 kV ESD protection and 3750 VDC intra-module isolation are also provided. The I-87068 is the ideal solution for high power applications.

Application

• Building Automation
• Factory Automation
• Machine Automation
• Remote Maintenance
• Remote Diagnosis
• Testing Equipment

Specifications



CPU Module
Watchdog Timer Yes, Module (1.6 Seconds), Communication (Programmable)
Isolation
Intra-module Isolation 3750 VDC
LED Indicators
Status 1 x Power and Communication
8 x I/O
Relay Output
Channels 8 (Form A × 4, Form C × 4)
Type Signal Relay
Contact Rating 1 A @ 24 VDC (Max.)
0.5 A @ 120 VAC (Max.)
Operate Time 7 ms (typical)
Release Time 3 ms (typical)
Electrical Endurance 10^5 ops
Mechanical Endurance Form A: 10^7 ops
Form C: 10*10^6 ops
Power on Value Yes
Safe Value Yes
COM Ports
Baud Rate 115200 bps
Data Format N, 8, 1
Protocol DCON
Power
Consumption 1.8 W Max.
Mechanical
Dimensions (mm) 31 x 116 x 88 (W x L x H)
Environment
Operating Temperature -25 ~ +75 °C
Storage Temperature -30 ~ +75 °C
Humidity 5 ~ 95% RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

I-87068-G CR 4-ch Form A Power Relay and 4-ch Form C Power Relay Module (5A Rating Current) (Gray Cover) (RoHS)
