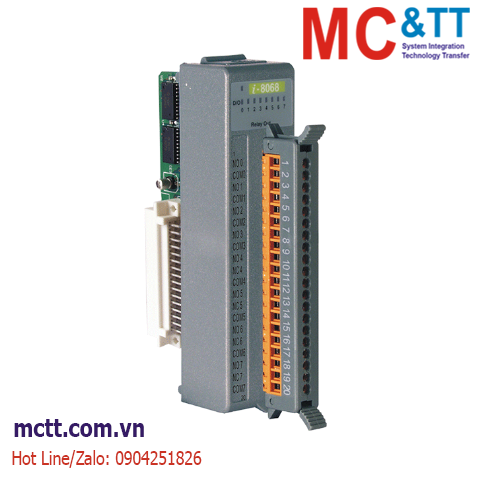

Module 8 kênh đầu ra Relay ICP DAS I-8068-G CR
I-8068-G CR đã dừng sản xuất và được thay thế bằng I-8068W-G CR
EOL Notification
Feature
• 4 Form A & 4 Form C Relay Output
• ±4 kV ESD Protection
Introduction
The I-8068 provides 4 Form A power relay output channels and 4 Form C power relay output channels. The I-8068 include 8 LED indicators for monitoring the relay output status.
Application
• Building Automation
• Factory Automation
• Machine Automation
• Remote Maintenance
• Remote Diagnosis
• Testing Equipment
Specifications
| Isolation |
| Intra-module Isolation |
3750 VDC |
| EMS Protection |
| ESD (IEC 61000-4-2) |
± 4 kV Contact for Each Terminal |
| LED Indicators |
| Status |
1 x Power and Communication
8 x I/O |
| Relay Output |
| Channels |
8 (4 x Form A, 4 x Form C) |
| Type |
Power Relay |
| Contact Rating |
1 A @ 120 VAC; 1 A @ 60 VDC |
| Operate Time |
5 ms Max. |
| Release Time |
3 ms Max. |
| Electrical Endurance |
500,000 ops. (rated load) |
| Mechanical Endurance |
100,000,000 ops. (no load) |
| Power |
| Consumption |
2.5 W Max. |
| Mechanical |
| Dimensions (mm) |
31 x 116 x 88 (W x L x H) |
| Environment |
| Operating Temperature |
-25 ~ +75 °C |
| Storage Temperature |
-40 ~ +85 °C |
| Humidity |
10 ~ 90% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| I-8068-G CR |
4-ch Form A and 4-ch Form C Power Relay Module (Gray Cover) (RoHS) |
