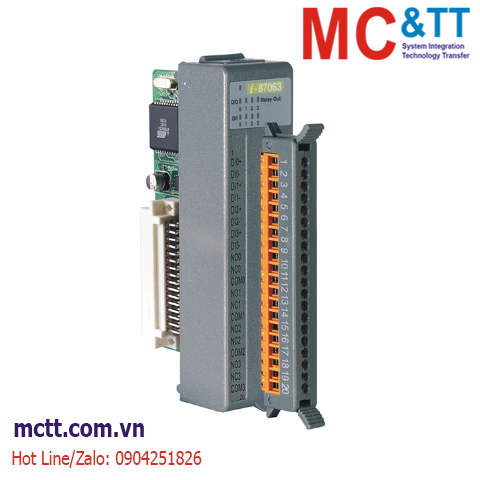

Module 4 kênh đầu ra Relay + 4 kênh DI ICP DAS I-87063-G CR
I-87063-G CR đã dừng sản xuất và được thay thế bằng I-87063W-G CR
EOL Notification
Feature
• 4-channel Digital Input and 4-channel Relay Output
• Form C Power Relay Output
• Sink- and Source-type Digital Input Channels
• Digital Input Channels can be used as 16-bit Counters
• Configurable Power-on Value
• Configurable Safe Value
• 4 kV ESD Protection
• 3750 VDC Intra-module Isolation
Introduction
The I-87063 module provides 4 isolated Digital Input channels and 4 Form C Relay Output channels. All Digital Input channels can be used as 16-bit counters. In addition, either sink- or source-type Digital Input can be selected via the wire connections. The I-87063 includes 8 LED indicators that can be used to monitor the status of the Digital Input and Relay Output, and options are available for configuring power-on and safe values. 4 kV ESD protection and 3750 VDC intra-module isolation are also provided to enhance the noise protection capabilities of the module in harsh industrial environments.
Application
• Building Automation
• Factory Automation
• Machine Automation
• Remote Maintenance
• Remote Diagnosis
• Testing Equipment
Specifications
| CPU Module |
| Watchdog Timer |
Yes, Module (1.6 Seconds), Communication (Programmable) |
| Isolation |
| Intra-module Isolation |
3750 Vrms |
| LED Indicators |
| Status |
1 x Power and Communication
8 x I/O |
| Digital Input/Counter |
| Channels |
4 |
| Type |
Wet Contact |
| Sink/Source (NPN/PNP) |
Sink/Source |
| ON Voltage Level |
+3.5 VDC ~ +30 VDC |
| OFF Voltage Level |
+1 VDC Max. |
| Max. Counts |
16-bit (65535) |
| Frequency |
100 Hz |
| Min. Pulse Width |
5 ms |
| Input Impedance |
3 kΩ, 0.25 W |
| Relay Output |
| Channels |
4 (Form C) |
| Type |
Signal Relay |
| Contact Rating |
Form C:
2 A @ 30 VDC (Resistive Load)
0.6 A @ 125 VAC (Resistive Load) |
| Operate Time |
10 ms (Max.) |
| Release Time |
5 ms (Max.) |
| Electrical Endurance |
1 × 10^5 ops. |
| Mechanical Endurance |
5 × 10^6 ops. |
| Power on Value |
Yes |
| Safe Value |
Yes |
| COM Ports |
| Baud Rate |
115200 bps |
| Data Format |
N, 8, 1 |
| Protocol |
DCON |
| Power |
| Consumption |
1.0 W Max. |
| Mechanical |
| Dimensions (mm) |
31 x 116 x 88 (W x L x H) |
| Environment |
| Operating Temperature |
-25 ~ +75 °C |
| Storage Temperature |
-30 ~ +75 °C |
| Humidity |
5 ~ 95% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| I-87063-G CR |
4-ch Isolated DI (Wet) and 4-ch Form C Power Relay Module (Gray Cover) (RoHS) |
