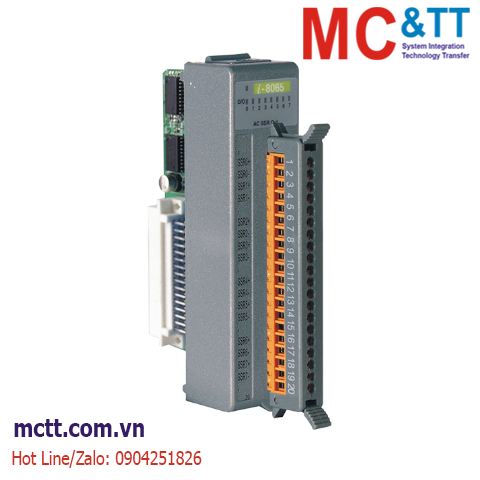

Module 8 kênh đầu ra AC SSR ICP DAS I-8065-G CR
I-8065-G CR đã dừng sản xuất
EOL Notification
Feature
• 8-channel AC SSR Output
• Form A AC Solid State Relay Output
• ±4 kV ESD Protection
Introduction
The I-8065 module provides 8 DC Solid State Relay (SSR) Output channels. In comparison to electromechanical relays, SSR technology provides a faster response time and greater electrical endurance. The integration of DC SSR technology also eliminates the potential for arcing, bouncing, and switching noise.
Application
• Building Automation
• Factory Automation
• Machine Automation
• Remote Maintenance
• Remote Diagnosis
• Testing Equipment
Specifications
| Isolation |
| Intra-module Isolation |
500 VDC |
| EMS Protection |
| ESD (IEC 61000-4-2) |
± 4 kV Contact for Each Terminal |
| LED Indicators |
| Status |
1 x Power and Communication
8 x I/O |
| Relay Output |
| Channels |
8 (Form A, Normal Open) |
| Type |
AC SSR |
| Contact Rating |
1 a @ 280 VAC |
| Operate Time |
1 ms |
| Release Time |
1/2 Cycle + 1 ms |
| Power |
| Consumption |
0.9 W Max. |
| Mechanical |
| Dimensions (mm) |
31 x 116 x 88 (W x L x H) |
| Environment |
| Operating Temperature |
-25 ~ +75 °C |
| Storage Temperature |
-40 ~ +85 °C |
| Humidity |
10 ~ 90% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| I-8065-G CR |
8-ch Form A AC SSR Output Module (Gray Cover) (RoHS) |
