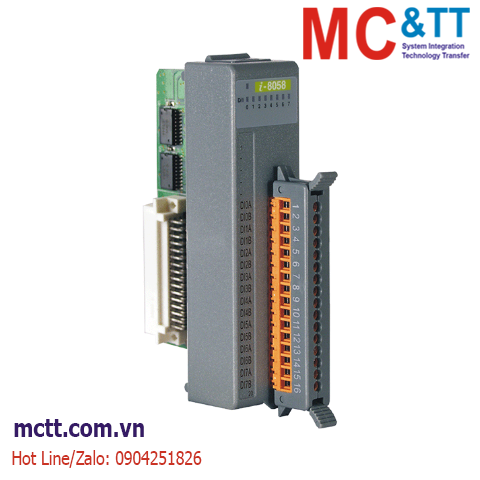

Module 8 kênh đầu vào AC DI ICP DAS I-8058-G CR
I-8058-G CR đã dừng sản xuất và được thay thế bằng I-8058W-G CR
EOL Notification
Feature
• 8-channel AC Digital Input
• Photocouple Isolation
• ±4 kV ESD Protection
• 3750 VDC Intra-module Isolation
Introduction
The I-8058 is an 8-channel AC Digital Input module with high voltage isolation. The ON voltage level for the module range can be between 80 ~ 250 VAC. The I-8058 include 8 LED indicators that can be used monitor DI channel status. 4 kV ESD protection and 3750 VDC intra-module isolation are standard.
Application
• Building Automation
• Factory Automation
• Machine Automation
• Remote Maintenance
• Remote Diagnosis
• Testing Equipment
Specifications
| Isolation |
| Intra-module Isolation |
3750 VDC |
| EMS Protection |
| ESD (IEC 61000-4-2) |
± 4 kV Contact for Each Terminal |
| LED Indicators |
| Status |
1 x Power and Communication
8 x I/O |
| AC Current Input |
| Frequency |
50 ~ 400 Hz |
| Digital Input |
| Channels |
8 AC (Differential) |
| Type |
Wet Contact |
| ON Voltage Level |
+80 ~ +250 VAC |
| OFF Voltage Level |
+30 VAC Max. |
| Input Impedance |
68 KΩ, 1 W |
| Power |
| Consumption |
0.6 W Max. |
| Mechanical |
| Dimensions (mm) |
31 x 116 x 88 (W x L x H) |
| Environment |
| Operating Temperature |
-25 ~ +75 °C |
| Storage Temperature |
-40 ~ +85 °C |
| Humidity |
10 ~ 90% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| I-8058-G CR |
8-ch Isolated DI (80~250 VAC) Module (Gray Cover) (RoHS) |
