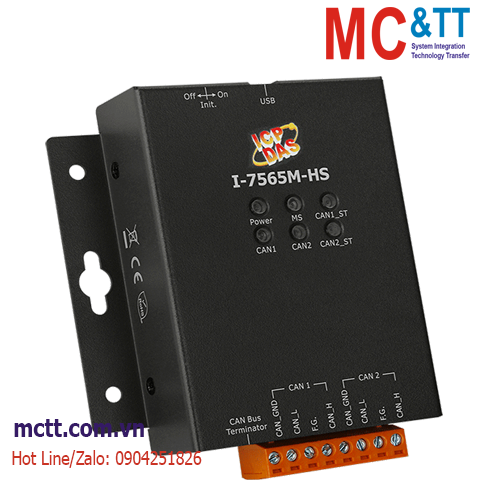

Bộ chuyển đổi USB sang 2 cổng CAN ICP DAS I-7565M-HS CR
Feature
- Compatible with USB 2.0 (High Speed)
- Compatible with the ISO 11898-2 standard
- Support both CAN2.0A and CAN2.0B specifications
- No external power supply (powered by USB)
- Support CAN Bus message filter configuration
- Timestamp of CAN message with at least ±10us precision
- Watchdog inside
- Built-in dip-switch to select 120 ohm terminal resister for CAN Bus
- Support firmware update via USB
- Provide utility tool for users module setting and CAN Bus communication testing conveniently
- Provide API library for user program development
Introduction
I-7565M-HS is a high speed USB to CAN converter with two CAN channels. It improves the transformation speed of other I-7565 series, and allows receiving max. 15000 standard 2.0A CAN frames per second. I-7565M-HS support CAN2.0A/2.0B protocol and different baud rates from 10 kbps to 1000 kbps. The important feature of I-7565M-HS is to support the user-defined baud rate function no matter what the baud rate is. When connecting I-7565M-HS to PC, PC will load the relevant device driver automatically (hot plug & play). Therefore, users can make data collection and processing of CAN Bus network easier and quicker by applying I-7565M-HS. The application fields can be CAN Bus monitoring, building automation, remote data acquisition, environment control and monitoring, laboratory equipment & research, factory automation, etc. The following is the application structure for the USB to CAN module. The PC can be the CAN host, monitor or HMI to access/control the CAN devices through the CAN network by the I-7565M-HS Converter. The module let users to communicate with CAN devices easily from PC with USB interface.
Application
- Factory Automation
- Building Automation
- Home Automation
- Control System
- Monitor System
- Vehicle Automation
Specifications
| Software |
| SDK |
C#.Net, VB.Net, VC++.Net |
| LED Indicators |
| Status |
1 x Power
1 x Module status
4 x CAN status |
| USB |
| Specification |
USB 2.0 High Speed (480Mbps) |
| Connector |
1 x USB (Type B) |
| Driver |
Built-in Windows 7/8.1/10/11 |
| CAN |
| Ports |
1 |
| Baud Rate |
10 k ~ 1 M bps |
| Isolation |
3000 VDC for DC-to-DC, 2500 Vrms for photocoupler |
| Terminal Resistor |
DIP switch for the 120 Ω terminal resistor |
| Specification |
ISO-11898-2, CAN 2.0A and CAN 2.0B |
| Filter |
Yes |
| Receive Buffer |
512 data frames |
| Data Flow |
15000 fps for Tx/Rx |
| Power |
| Input Range |
+10 VDC ~ +30 VDC |
| Consumption |
1.5 W |
| Mechanical |
| Casing |
Metal |
| Dimensions (mm) |
111 x 102 x 27 (W x L x H) |
| Installation |
Wall Mount |
| Environment |
| Operating Temperature |
-25 ~ +75 °C |
| Storage Temperature |
-30 ~ +80 °C |
| Humidity |
10 ~ 90% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| I-7565M-HS CR |
High Speed USB to 2-port CAN Bus Converter (Metal Case) (RoHS) |
