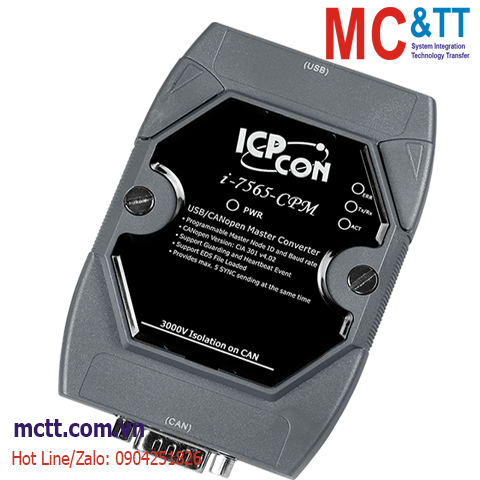

Bộ chuyển đổi USB sang CANopen Master ICP DAS I-7565-CPM-G CR
Features
- Follow CiA 301 v4.02
- Support EDS File
- Support Node Guarding and Heartbeat protocol
- Support NMT, PDO, SDO, SYNC and EMCY protocol
- Fully compliant with USB 1.1/2.0 (Full Speed)
- Support Auto-Seach slave device functions.
- Support on-line adding and removing devices
- Free software development tools for windows.
- Provide demos and utility
- Support event trigger, such as EMCY event, Guarding event, Heartbeat event, and Slave Boot-up events
- Support VC6, VB6, VB.net, and C# development
Introduction
The I-7565-CPM. It's a standard CANopen protocol and build-in a cpu of 80186 80MHz to run I-7565-CPM firmware independently. I-7565-CPM provides a set APIs that will be easy programr to controll device by user. And it will resoult the problem of anxiety and complexity of protocol for user. it can communication between computer and I-7565-CPM's USB interface to remote the device easily and fastily, Due to I-7565-CPM has a interface of usb, so it become a move-station to create the CANopen system effectively. More infomation please to refer to web side.

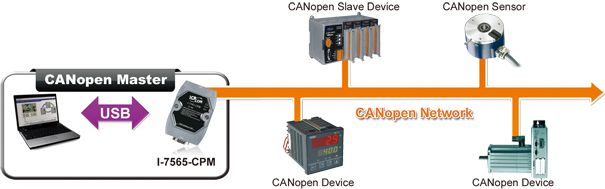

Applications
- Industrial Machinery
- Laboratory Equipment & Research
- Restaurant Appliances
- Maritime
- Medical
- Specialty Vehicles...etc.
Click to view the Introduction of https://mctt.vn/canopen-icp-das
Specifications
| Software |
| Driver |
Windows 98/ME/NT/2K/XP/Vista/Win7/Win10 and Linux |
| SDK |
VC++6.0, VB6.0, C#.net, VB.net |
| CPU Module |
| CPU |
80186, 80MHz. |
| EEPROM |
16 KB |
| Flash |
512 KB |
| SRAM |
512 KB |
| Watchdog Timer |
Hardware watchdog |
| LED Indicators |
| Status |
PWR LED, ACT LED, ERR LED, Tx/Rx LED. |
| USB |
| Transfer Speed |
921.6 kbps |
| Connector |
1 x USB (Type B) |
| CANopen |
| Controller |
NXP SJA1000T CAN Controller |
| Ports |
1 |
| Baud Rate |
10 k ~ 1 M |
| Isolation |
3000 VDC for DC-to-DC, 2500 Vrms for photo-couple |
| Terminal Resistor |
Built-in 120Ω |
| Protocol |
CiA 301 v4.02 |
| NMT |
Master |
| Mechanical |
| Dimensions (mm) |
72 x 101 x 33 (W x H x D) |
| Environment |
| Operating Temperature |
-25 ~ +75 °C |
| Storage Temperature |
-30 ~ +80 °C |
| Humidity |
10 ~ 90% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| I-7565-CPM-G CR |
USB to CANopen Master Converter (RoHS) |
