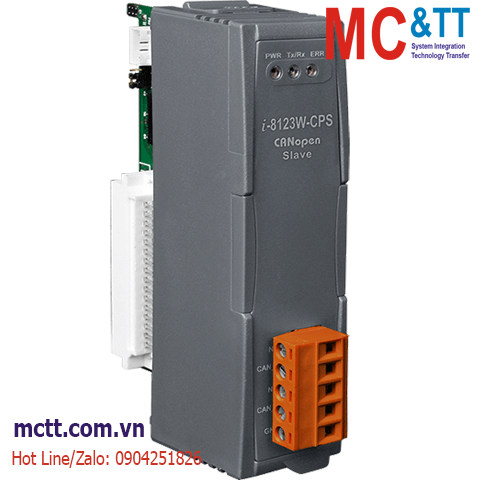

Module 1 cổng CANopen Slave ICP DAS I-8123W-CPS-G CR

Module 1 cổng CANopen Slave ICP DAS I-8123W-CPS-G CR

Features

• One CANopen slave communication port
• Standard CANopen specification DS-301 v4.02
• Support node id 1~127
• Support both Node Guarding Protocol and Heartbeat Consumer Protocol
• Provide event trigger function for EMCY event, Node Guarding event and Heartbeat event
• Provide Event-trigged, remote-requested, cyclic and acyclic SYNC of PDO mode
• The PDO communication supports single byte output so that users can just modify the value of one byte without changing the others
• Allow dynamic PDO mapping
• The SDO communication support segment protocol
• Programmable slave node ID for the CANopen slave function
• Provide eVC++, VB.Net and C# demos
• Support WP-8xx1, VP-25W1 and XP-8xx1-CE6 PACs
• 256 records CANopen message receive buffer size
• 2500 Vrms photo-isolation protection on CAN side

Introduction

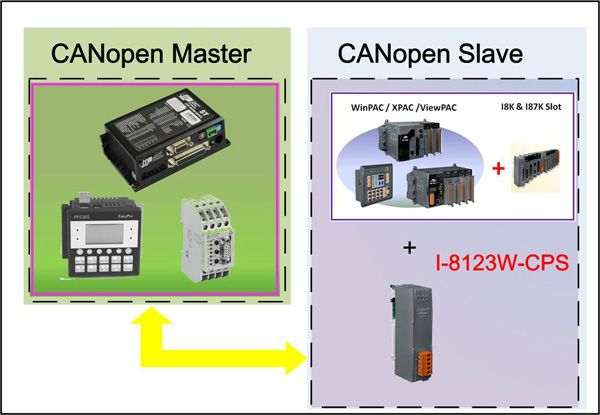

The CAN (Controller Area Network) is a serial communication bus especially suited to interconnect smart devices to build smart systems or sub-system. It efficiently supports distributed real-time control with a very high level of security. In CAN networks, there is no addressing of subscribers or stations in the conventional sense, but instead prioritized messages are transmitted. As standalone CAN controller, I-8123W-CPS can represents an economic solution of CANopen application and be a CANopen slave device in the CAN bus on the CANopen network. It follows CiA standard specific DS-301 v4.02 and several communication service functions to communicate with master devices. It has one independent CAN communication port with 5-pin screw terminal connector, and has the ability to cover a wide range of CANopen applications. Besides,I-8123W-CPS uses the new Phillips SJA1000T and transceiver 82C250, which provide both CAN 2.0A and 2.0B specific, re-transmission function, bus arbitration and error detection with auto correction.

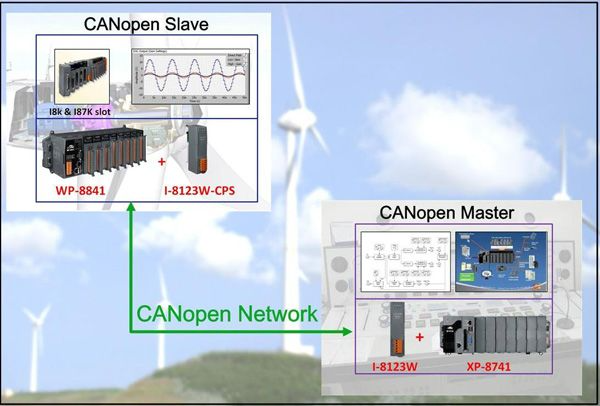

It can be installed in WinPAC, ViewPAC and XPAC now. It is popularly applied in the industrial automation, building automation, vehicle, maritime, embedded control network and etc. In order to expand the CANopen functions of ICP DAS products, I-8123W-CPS module is developed for this purpose.

Applications

• Industrial Machinery
• Laboratory Equipment & Research
• Restaurant Appliances
• Maritime
• Medical
• Specialty Vehicles...etc.

Click to view the Introduction of https://mctt.vn/canopen-icp-das
