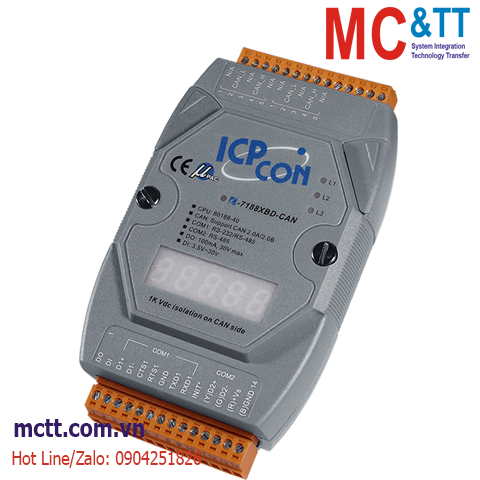

Bộ lập trình điều khiển CAN ICP DAS I-7188XBD-CAN-G CR
Feature
- 2500Vrms photo-isolation protection
- Compatible with CAN specification 2.0 parts A and B
- Programmable transfer rate up to 1 Mbps
- Jumper select 120Ω terminal resistor for CAN channel
- 64-bit hardware unique serial number inside
- COM driver support interrupt & 1KB QUEUE input buffer
- COM port: COM1, COM2
- Built-in RTC, NVRAM, EEPROM
- One digital Input channel and one open collector output channel
- Built-in self-tuner ASIC controller on RS-485 port
- 7-segment LED display
- Built-in ICP DAS’s MiniOS7
- Program download port: COM1
Introduction
The I-7188XBD-CAN series PACs (Programmable Automation Controller) are powered by 80188-40 processor with 512K bytes of static RAM, and 512K bytes of Flash memory. All of them provide several communication interfaces to adapt to various applications, such as CAN port, RS-232 port and RS-485 port. Uses can program their application program flexibly with C/C++ language because of the built-in MiniOS7 operation system. Besides, the I-7188XBD-CAN series PACs have different I/O types for users to match their requirement. For I-7188XBD-CAN, it provides 1 open collector digital output channel and 1 digital input channel. It is useful for transfer the command from differential communication interface. Therefore, it can satisfy the applications with I/O demand. Therefore, the I-7188XBD-CAN series PACs are economic and convenient solution for diversification CAN application.
Application
- CAN bus communication application
- Industry automation
- Auto detecting CANopen slave devices
- IO monitor
- High speed data acquisition system
- Process monitor and control
- Factory automation
- Laboratory automation
- Communication switching
Specifications
| CPU Module |
| CPU |
80188, 40 MHz or compatible |
| 64-bit Hardware Serial Number |
Yes, for Software Copy Protection |
| EEPROM |
2048 Bytes (8 block, each block contains 256byte); Data retention > 100 years; 1,000,000 erase/write cycles |
| Flash |
512 KB; Erase unit is one sector (64 KB); 100,000 erase/write cycles |
| NVRAM |
31 bytes (battery backup, data valid for up to 10 years) |
| SRAM |
512 KB |
| Real Time Clock |
Yes |
| Watchdog Timer |
CPU built-in |
| LED Indicators |
| Status |
3 x Programmable |
| COM Ports |
| Ports |
1 x RS-485/RS-232 (can’t be used simultaneously,
screwed terminal block)
1 x RS-485 (Self-turner inside, screwed terminal block) |
| Baud Rate |
110, 150, 300, 600, 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200 bps |
| CAN |
| Controller |
NXP SJA1000T with 16 MHz clock |
| Ports |
1 |
| Baud Rate |
10 k ~ 1 M bps |
| Isolation |
1000 VDC for DC-to-DC, 2500 Vrms for photo-couple |
| Terminal Resistor |
Jumper for 120 Ω terminal resistor |
| Specification |
ISO-11898-2, CAN 2.0A and CAN 2.0B |
| Power |
| Input Range |
+10 VDC ~ +30 VDC |
| Consumption |
3 W |
| Mechanical |
| Casing |
Plastic |
| Dimensions (mm) |
72 x 122 x 33 (W x L x H) |
| Installation |
DIN-Rail |
| Environment |
| Operating Temperature |
-25 ~ +75 °C |
| Storage Temperature |
-30 ~ +80 °C |
| Humidity |
10 ~ 90% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| I-7188XBD-CAN-G CR |
I-7188 CAN Controller with Serial Port, 7-segment Display, DI and DO Channels (RoHS) |
