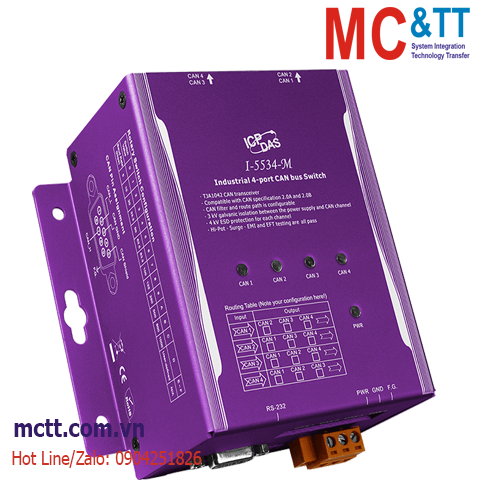

Switch công nghiệp 4 cổng CAN bus ICP DAS I-5534-M CR
Feature
- 4 CAN communication ports
- Compatible with CAN specification 2.0A and 2.0B
- Fully compatible with the ISO 11898-2 standard
- CAN bus filter is configurable
- 100 data frames buffer for each CAN channel
- Max data flow up to 2500 fps for all CAN channel
- Selectable baud rate by rotary switch
- Selectable 120Ω terminal resistor by DIP switch
- LED for CAN reception and transmission
- Support CAN network with star or tree topology
- Extending the CAN bus distance to expand the CAN network size
- Integrating different CAN network with different baud rate
- I-5534-M is casing with Aluminum metallic case
- Utility tool for CAN filter, route path, user-defined baud rate and CAN-ID mapping configuration
- Max. CAN-ID mapping data up to 32 for each CAN channel
Introduction
The I-5534-M is one kind of CAN bus switch. There are four independent CAN channels which offer a flexible design of the start or tree network topology. This new topology could resolve the complex CAN bus application, like industrial machinery, building automation, vehicle automation, and etc. Furthermore the I-5534-M integrates and exchanges data between different CAN network which has different baud rate. It helps users to extend the CAN network system. The I-5534-M could increase the maximum CAN node count in a CAN network by splitting the CAN network into several subnets. In additional, the user-defined CAN baud rate and CAN filter configuration are also supported.
Application
• Control System
• Building Automation
• Factory Automation
• Distributed data acquisition
Specifications
| LED Indicators |
| Status |
1 x Power
4 x CAN status |
| COM Ports |
| Ports |
1 x RS-232
(9-pin screwed terminal block (TxD, RxD, GND )) |
| Fiber |
| Propagation Delay |
240 us ~ 1360 us |
| CAN |
| Controller |
High Performance Microcontroller |
| Ports |
4 |
| Baud Rate |
5 k ~ 1 M bps |
| Isolation |
3000 VDC for DC-to-DC, 2500 Vrms for photo-couple |
| Terminal Resistor |
Selectable 120Ω terminal resistor by internal jump |
| Specification |
ISO-11898-2, CAN 2.0A and CAN 2.0B |
| Filter |
Yes |
| Time Delay |
[ 1Mbps (8-byte Data) ] ID-11bit => 240 us ;
[ 5Kbps (8-byte Data) ] ID-29bit => 1360 us |
| Power |
| Input Range |
+10 VDC ~ +30 VDC |
| Consumption |
1.5 W |
| Mechanical |
| Casing |
Metal |
| Dimensions (mm) |
116.5 x 127 x 61.3 (W x L x H) |
| Installation |
Wall-Mounting |
| Environment |
| Operating Temperature |
-25 ~ +75 °C |
| Storage Temperature |
-30 ~ +80 °C |
| Humidity |
10 ~ 90% RH, Non-condensing |
Specification Memo
note1:
The propagation delay depends on the CAN Bus baud rate and the CAN message format.
The minimum delay is [ 11-bit ID and 8-byte data @ 1M bps ]
The maximum delay is [ 29-bit ID and 8-byte data @ 5k bps ]
Download
Datasheet
Documents
Ordering Information
| I-5534-M CR |
Industrial 4-port CAN bus Switch (Metal Case) (RoHS) |
