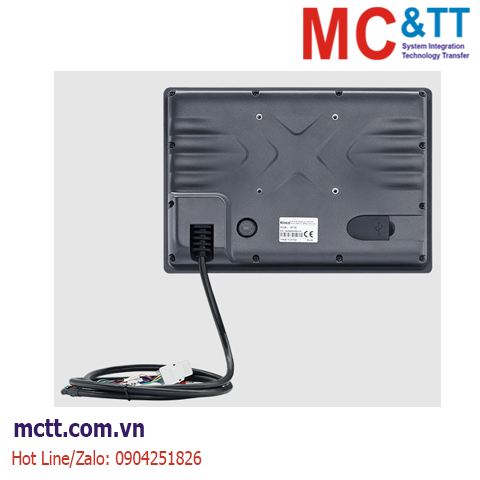

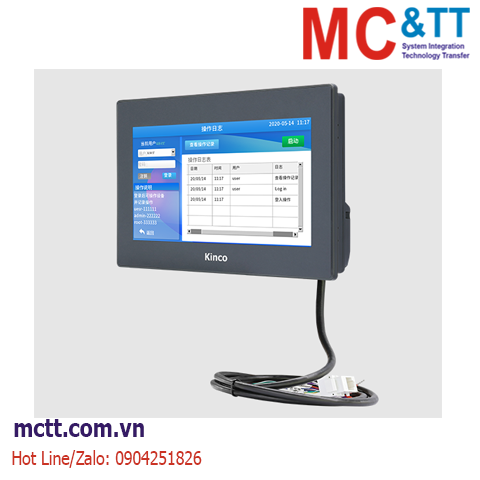

Màn hình cảm ứng HMI 10.1 inch chống nước Kinco G100E-LRF (2 COM, 1 USB Host, 1 Ethernet)
Tính năng
- IP65-compliant shockproof and waterproof complete machine
- Three download methods, efficient and convenient
- Built in IoT function, remote service support
Thông số kỹ thuật
|
Performance specification |
|
Display size |
10.1″TFT |
|
Resolution |
1024*600 pixel |
|
Display color |
16.2M |
|
Backlight |
LED |
|
Brightness |
300cd/m2 |
|
Backlight life |
More than 30000 hours |
| Touch panel |
4 line precision resistance network（surface hardness 4H） |
|
CPU |
ARM RISC 32Bit 792MHz |
|
Storage |
128MB Flash Memory+128MB Memory |
|
RTC |
Built-in RTC |
|
Extensible memory |
1 USB Host |
|
Printer port |
USB Host/serial port |
| Ethernet |
LAN0:10/100 Mbps |
|
Program download |
Ethernet port/USB Slave/U disk |
|
COM port |
COM0:RS232/RS485；COM2:RS232 |
| Extended interface |
None |
|
Electrical specification |
|
Input power supply |
DC10V～DC28V |
|
Rated power |
6W @24VDC |
| Allowable loss of power |
<3ms |
|
Insulation resistance |
Over 50MΩ@500V DC |
|
Hi-pot test |
500V AC 1 minute |
|
Structure specification |
|
Shell material |
Engineering plastic |
|
Dimensions(mm) |
271*191*35.5mm |
|
Cutout size(mm) |
260*180mm |
|
Weight |
0.9 Kg |
|
Environment specification |
|
Operating temperature |
0～50℃ |
|
Operating humidity |
10～90% non-condensing |
|
Storage temperature |
-20～60℃ |
|
Storage humidity |
10～90% non-condensing |
|
Shockproof test |
10~500Hz, 30m/s², X,Y,Z direction/hour |
|
Cooling method |
Natural air cooling |
|
Certification |
|
Degree of protection |
IP65 certification(4208-93) |
|
CE certification |
EN61000-6-4:2019, EN61000-6-2:2019 |
|
Software |
|
Configuration software |
Kinco DTools V4.1 and above version |
