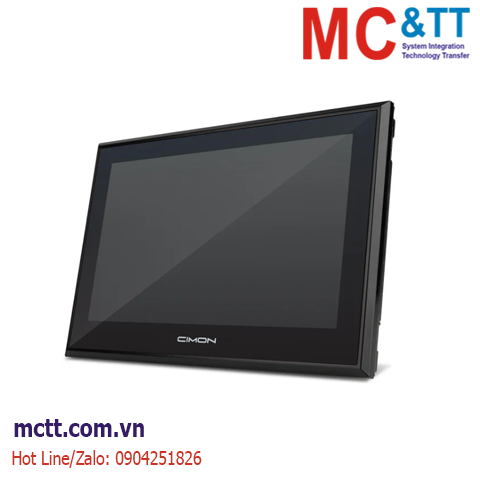

Màn hình cảm ứng HMI 10.1 inch Cimon CM-eXT2-10W-C-DF (10.1" TFT, DC24V, 2 Serial, 2 Ethernet, 1 Audio, 1 Micro SD slot)
The 10” eXT2 Series Xpanel HMI combines a high-resolution display, faster processing power, and a slim, durable design tailored for industrial applications. Built for demanding environments, it offers robust performance and reliability.
Tính năng
• Wide operating temperature (-20 - +70 °C)
• High resolution, wide-screen display
• Quad-core high-speed processor
• 2GB of RAM; 8GB of Storage
• Slim profile & light weight
• Resistive and capacitive touch screen options
• 1 USB-C port, 2 serial ports, dual Ethernet ports,
• 1 line-out audio port, and 1 microSD card slot
• High-brightness option with 99.9% UV protection
• Canvas software
• VNC Compatibility
• FDA 21 CFR Part 11 Compliance
• Embedded SQLite Database
• Email and text notifications
Supported Drivers
- Client Device (Ethernet): EtherNet/IP (Allen-Bradley), EtherNet/IP (ODVA), Siemens S7, Mitsubishi MELSEC, Modbus TCP, OPC UA Client, Omron FINS, Proface GP, Fatek FBs, LSIS FEnet, CIMON PLC, ATIVA BACnet/IP, Beckhoff ADS/AMS, CODESYS V3, DNP3, Keyence Host Link
- Client Device (Serial): Allen-Bradley DF-1, Mitsubishi MELSEC, Modbus RTU, LSIS Cnet, Omron HostLink, Panasonic FP7, Yokogawa FA-M3, CIMON PLC, ATIVA, DNP3, Hallim Loader, Keyence Host Link, Koyo DirectNET, User Protocol
- Server Device (Ethernet): EtherNet/IP Server, MQTT JSON Publisher, Modbus TCP, OPC UA, Sparkplug Edge Node
- Server Device (Serial): Modbus RTU
Thông số kỹ thuật
| Touch Panel |
5-Wire Resistive |
10-Point Capacitive |
| Type Part Number (CM-eXT2-...) |
Standard
10W-R-DF |
High-Brightness
10W-RH-DF |
Standard
10W-C-DF |
High-Brightness
10W-CH-DF |
|
Enclosure |
Aluminum |
Aluminum |
| Aluminum |
Aluminum |
| LCD Size |
10.1 inch Wide TFT Color |
| Colors |
16.7M |
| Resolution |
1280 x 800 WXGA (16:10) |
| Effective Display Area (W x H) |
216.96 x 135.60 mm |
| PPI |
149 |
| Backlight |
LED |
| Luminance |
500 cd/m² |
1200 cd/m² |
500 cd/m² |
1200 cd/m² |
| UV Protective Coating |
- |
99.9% UV Protection |
- |
99.9% UV Protection |
| Contrast Ratio |
800:1 |
| Backlight Life |
50,000 hours |
| Touch Panel Accuracy |
Active Area Width (X) ±2%, Height (Y) ±2% |
| Display Orientation |
Landscape (Standard, 180°), Portrait (90°, 270°) |
| Memory |
2 GB LPDDR4 |
| Storage |
8 GB eMMC |
| SD Card |
1x MicroSD card slot |
| COM 1 |
RS-422/485 |
| COM 2 |
RS-232C |
| Ethernet |
2x 10/100/1000 port |
| USB Host |
1x Type A |
| Tool Port |
1x USB-C Device |
| Audio |
One Line-out port |
| Rated Voltage |
24 VDC, Class 2 |
| Inrush Current |
30 A maximum |
| Power Consumption |
15 W (Max: 16 W) |
20 W (Max: 21 W) |
15 W (Max: 16 W) |
20 W (Max: 21 W) |
| Operating System |
Embedded Linux |
| Project Memory |
250 MB |
| User Memory |
4 GB |
| Realtime Clock |
Realtime clock built into panel, backed up for 10 years at 25°C |
| Acknowledgement Sound |
Electronic buzzer |
|
Agency Approvals |
UL |
UL61010-1 / UL61010-2-201 (E231117), Class 1 Div 2 |
| CE |
Electromagnetic Compatibility Directive 2014/30/EU (EMC) |
| FCC |
The 47 CFR, Part2, Part15 and Part 18 Of FCC Requirement |
| KC |
Registration of Broadcasting and Communication Equipments |
| Protection Class |
IP66 / IP68 / IP69K (front), UL Type 4X, 12, NEMA Type 4X, 12 |
| Hazardous Rating |
- |
UL C1D2 |
- |
UL C1D2 |
| Type |
Standard |
High-Brightness |
| Operating Temperature |
-20 – +70°C (-4 – +158°F) |
| Storage Temperature |
-25 – +75°C (-13 – +167°F) |
| Operating Humidity |
10–90% RH (below 29℃, not condensed) |
| Storage Humidity |
10–90% RH (below 39℃, not condensed) |
| Type |
Standard |
High-Brightness |
| Dimensions |
262.3 x 187.9 x 51.9 mm (10.32 x 7.39 x 2.04 in) |
| Panel Cut |
254 x 179 mm (10 x 7.04 in) |
| Weight |
1.6 kg (3.52 lbs) |
| VESA (W x H) |
75 mm x 75 mm (2.95 x 2.95 in) |
