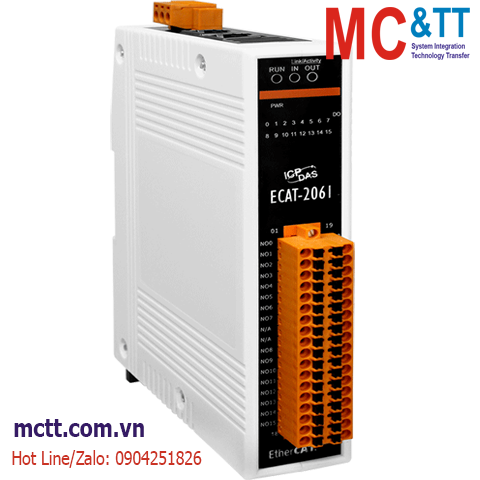

Module EtherCAT Slave 16 kênh đầu ra Relay ICP DAS ECAT-2061 CR
Features
• On the fly processing: EtherCAT
• Powerful MCU handles efficient network traffic
• 2 x RJ-45 bus interface
• Distance between Stations up to 100 m (100BASE-TX)
• Support daisy chain connection
• EtherCAT conformance test tool verified
• Removable terminal block connector
• LED indicators for the I/O status
• Built-In digital I/O: 16-ch Relay DO
• RoHS compliant
• ESD Protection 4 KV Contact for each channel
Introduction
On the fly processing: EtherCAT Powerful MCU handles efficient network traffic 2 x RJ-45 bus interface The ECAT-2000 is equipped with the EtherCAT protocol and installed by daisy chain connection which permits the flexibility in devices installation and reduces infrastructure and operation costs. All the modules can be deployed in the network topologies such as star, line or ring. The isolation input and output design protects the ECAT-2000 against the harmful interference and environment. The ECAT-2061 is built in isolated 16 relay outputs. Users can obtain the output status not only via the process data but also from its LED indicators. It has passed and verified by the conformance test tool, therefore eligible EtherCAT Master or configurator can manipulate it simply and implement your various applications easily.
Applications
• Semiconductor Tools
• Metal Forming
• Packaging
• Injection Molding
• Assembly Systems
• Printing Machines
• Robotics
Specifications
| EMS Protection |
| EFT (IEC 61000-4-4) |
Signal: ±1 kV Class A; Power: ±1 kV Class A |
| ESD (IEC 61000-4-2) |
± 4 kV Contact for Each Channel |
| Surge (IEC 61000-4-5) |
± 1 kV Class A |
| Relay Output |
| Channels |
16 |
| Type |
Form A (SPST-NO) |
| Contact Rating |
3 A @ 30 VDC
3 A @ 250 VAC (47 ~ 63 Hz) |
| Operate Time |
10 ms Max. |
| Release Time |
5 ms Max. |
| Electrical Endurance |
1 x 10^5 Operations |
| Mechanical Endurance |
2 x 10^7 Operations |
| Isolation |
3000 VDC |
| Power on Value |
Yes |
| Safe Value |
Yes |
| EtherCAT |
| Ports |
2 x RJ-45 |
| Distance Between Stations |
100 m Max. (100Base-TX) |
| Data Transfer Medium |
Ethernet/EtherCAT cable (Min. CAT5), shielded |
| Cycle Time |
200 us |
| Distributed Clocks |
Yes |
| Power |
| Input Range |
+10 VDC ~ +30 VDC |
| Consumption |
4 W Max. |
| Mechanical |
| Casing |
Plastic |
| Dimensions (mm) |
31 x 157 x 126 (W x L x H) |
| Installation |
DIN-Rail |
| Environment |
| Operating Temperature |
-25 ~ +75 °C |
| Storage Temperature |
-30 ~ +80 °C |
| Humidity |
10 ~ 90% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| ECAT-2061 CR |
EtherCAT Slave I/O Module with Isolated 16-ch Relay (RoHS) |
