Module EtherCAT 8 kênh đầu vào nhiệt độ RTD ICP DAS EC4-RTD8 CR

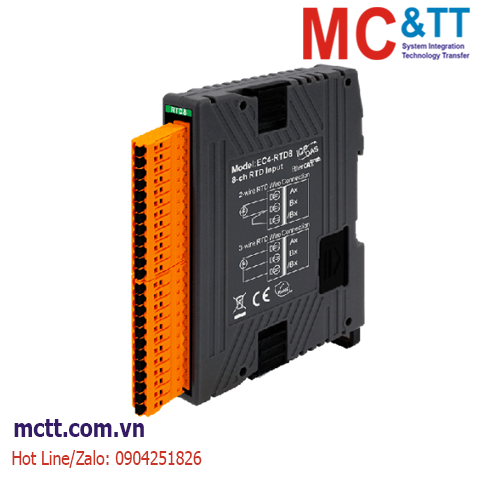

The EC4-RTD8 is an industrial I/O module built in 8 RTD intputs, based on the slim-type design. That provides 90Hz high-speed measurement and open wire detection for each channel. Each channel can be connected to different types of RTD sensors and supports 3-wire RTD lead wire compensation, ensuring accurate measurements regardless of wire length. It features the EtherCAT protocol, providing a system with higher scalability and fewer cables. Having passed consistency tests and verification, the EC4-RTD8 can be easily operated by compatible EtherCAT MainDevice, facilitating the implementation of various applications.
Features
- On the fly processing: EtherCAT
- Removable terminal block connector
- Built-In 8-channel RTD Intputs
- 3-wire RTD Lead Resistance Compensation
- 90 Hz High-speed Sampling Rate for each Channel
- Open Wire Detection
- Individual Channel Configuration
Applications
| EMS Protection |
| EFT (IEC 61000-4-4) |
Signal: 1 KV Class B; Power: 1 KV Class B |
| ESD (IEC 61000-4-2) |
±4 kV Contact for Each Terminal |
| Analog Input |
| Channels |
8 |
| Type |
Pt100, Ni120, Cu50, Cu100 |
| Resolution |
16-bit |
| Accuracy |
Fast Mode：±0.1 % of FSR ( 25℃ )
Normal Mode：±0.05 % of FSR ( 25℃ ) |
| Sampling Rate |
Fast Mode：90 Hz ( per channel )
Normal Mode：1.5Hz ( per channel ) |
| Input Impedance |
> 1 MΩ |
| Individual Channel Configuration |
Yes |
| Open Wire Detection |
Yes |
| 3-wire RTD Lead Resistance Elimination |
Yes |
| EtherCAT |
| Ports |
EtherCAT |
| Cycle Time |
100 us |
| Distributed Clocks |
Yes |
| Power |
| Input Range |
+24 VDC |
| Consumption |
1 W (max.) |
| Mechanical |
| Casing |
Plastic |
| Dimensions (mm) |
17.5 x 108 x 90 (W x L x D) |
| Installation |
DIN-Rail or Wall Mounting |
| Environment |
| Operating Temperature |
-25 ~ +75°C |
| Storage Temperature |
-30 ~ +80°C |
| Humidity |
10 ~ 90% RH, Non-condensing |
Specifications
Download
Datasheet
Documents
Ordering Information
| EC4-RTD8 CR |
EtherCAT Slim I/O Module with 8-ch High Speed RTD Inputs, 90 S/s (RoHS) |
