Module EtherCAT 16 kênh đầu ra kỹ thuật số DO ICP DAS EC4-A16 CR

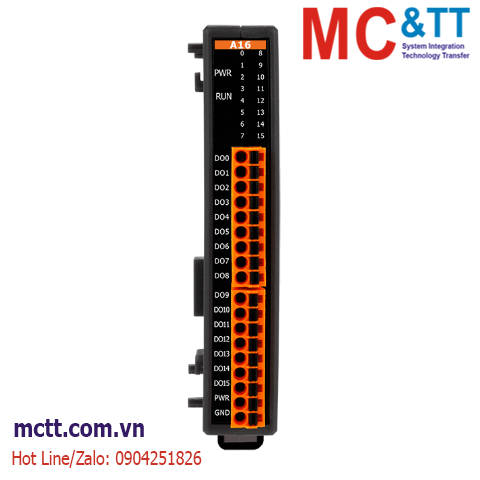

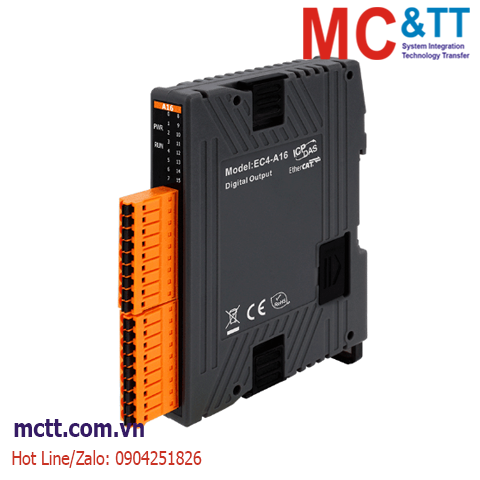

The EC4-A16 is an industrial I/O module designed with a slim-type form factor, featuring 16 isolated digital output channels. It features the EtherCAT protocol, providing a system with higher scalability and fewer cables. Users can check the current output status through LED indicators on the enclosure.
In addition, the module has passed the test and verification of the conformance testing tool. It is also compatible with various standard EtherCAT MainDevices to enable diversified applications.
Features
- Interface: EtherCAT
- Removable terminal block connector
- LED indicators for the I/O status
- Built-In isolated 16-channel digital outputs
- Configurable Power-on Value Settings
- Keep output values after state machine change (selectable)
Applications
Specifications
| EMS Protection |
| ESD (IEC 61000-4-2) |
±8KV(Air for Random Point) |
| Digital Output |
| Channels |
16 |
| Type |
N-MOS (Source), with internal flywheel diode |
| Load Voltage |
40 VDC Max. |
| Load Current |
500 mA/Channel (Source) |
| Isolation |
3000VDC |
| EtherCAT |
| Cycle Time |
100 μs |
| Distributed Clocks |
Yes |
| Power |
| Input Range |
+24 VDC |
| Consumption |
1.5 W |
| Mechanical |
| Casing |
Plastic |
| Dimensions (mm) |
17.5 x 108 x 73 (W x L x D)(excluding terminals) |
| Installation |
DIN-Rail or Wall Mounting |
| Environment |
| Operating Temperature |
-25 ~ +70°C |
| Storage Temperature |
-30 ~ +80°C |
| Humidity |
10 ~ 90% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| EC4-A16 CR |
EtherCAT SubDevice Slim Module with Isolated 16-ch Source-type DO (RoHS) |
