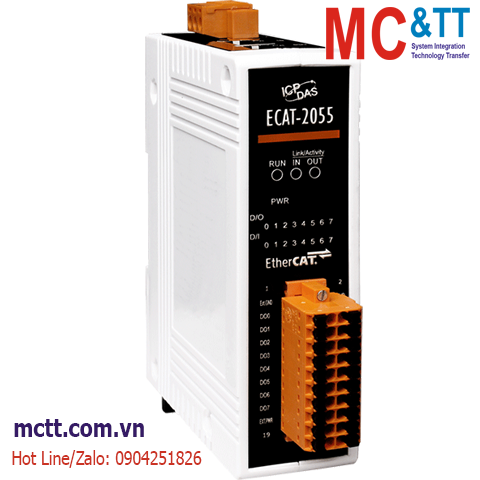

Module EtherCAT Slave 8 kênh đầu vào số DI + 8 kênh đầu ra số DO ICP DAS ECAT-2055 CR
Features
• On the fly processing: EtherCAT
• Powerful MCU handles efficient network traffic
• 2 x RJ-45 bus interface
• Distance between Stations up to 100 m (100BASE-TX)
• Support daisy chain connection
• EtherCAT conformance test tool verified
• Removable terminal block connector
• LED indicators for the I/O status
• Built-In digital I/O: 8 DI and 8 DO
• RoHS compliant
• ESD Protection 4 KV Contact for each channel
Introduction
The ECAT-2000 is equipped with the EtherCAT protocol and installed by daisy chain connection which permits the flexibility in devices installation and reduces infrastructure and operation costs. All the modules can be deployed in the network topologies such as star, line or ring. The isolation input and output design protects the ECAT-2000 against the harmful interference and environment. The ECAT-2055 is built in isolated 8 digital inputs and 8 digital outputs. Users can obtain the input and output status not only via the process data but also from its LED indicators. It has passed and verified by the conformance test tool, therefore eligible EtherCAT Master or configurator can manipulate it simply and implement your various applications easily.
Applications
• Semiconductor Tools
• Metal Forming
• Packaging
• Injection Molding
• Assembly Systems
• Printing Machines
• Robotics
Specifications
| EMS Protection |
| EFT (IEC 61000-4-4) |
Signal: ±1 kV Class A; Power: ±1 kV Class A |
| ESD (IEC 61000-4-2) |
± 4 kV Contact for Each Channel |
| Surge (IEC 61000-4-5) |
± 1 kV Class A |
| Digital Input |
| Channels |
8 |
| Type |
Dry+Wet Contact |
| Sink/Source (NPN/PNP) |
Sink/Source |
| ON Voltage Level |
Dry: Close to GND
Wet: +10 V ~ +50 V |
| OFF Voltage Level |
Dry: Open
Wet: +4 V Max. |
| Isolation |
3750 VDC |
| Digital Output |
| Channels |
8 |
| Type |
Open Collector |
| Sink/Source (NPN/PNP) |
Sink |
| Load Voltage |
+3.5 VDC ~ +50 VDC |
| Load Current |
700 mA/Channel |
| Isolation |
3750 Vrms |
| EtherCAT |
| Ports |
2 x RJ-45 |
| Distance Between Stations |
100 m Max. (100Base-TX) |
| Data Transfer Medium |
Ethernet/EtherCAT cable (Min. CAT5), shielded |
| Cycle Time |
200 us |
| Distributed Clocks |
Yes |
| Power |
| Input Range |
+10 VDC ~ +30 VDC |
| Consumption |
4 W Max. |
| Mechanical |
| Casing |
Plastic |
| Dimensions (mm) |
33 x 127 x 108 (W x L x H) |
| Installation |
DIN-Rail |
| Environment |
| Operating Temperature |
-25 ~ +75 °C |
| Storage Temperature |
-30 ~ +80 °C |
| Humidity |
10 ~ 90% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| ECAT-2055 CR |
EtherCAT Slave I/O Module with Isolated 8-ch DI (Dry, Wet) and 8-ch DO (Sink, NPN) (RoHS) |
