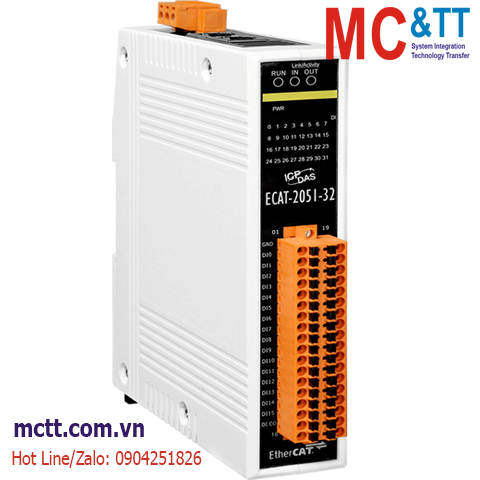

Module EtherCAT Slave 32 kênh đầu vào số DI ICP DAS ECAT-2051-32 CR

Chia sẻ:
Mã sản phẩm: ECAT-2051-32
Thương hiệu: ICP DAS
Tình trạng:

EtherCAT Slave I/O Module with Isolated 32-ch DI

Liên hệ
Mô tả

Module EtherCAT Slave 32 kênh đầu vào số DI ICP DAS ECAT-2051-32 CR

Features

• On the fly processing: EtherCAT
• Powerful MCU handles efficient network traffic
• 2 x RJ-45 bus interface
• Distance between Stations up to 100 meters (100BASE-TX)
• Support daisy chain connection
• EtherCAT conformance test tool verified
• Removable terminal block connector
• LED indicators for the I/O status
• Built-In 32 digital inputs
• RoHS compliant
• ESD Protection 4 KV Contact for each channel

Introduction

The ECAT-2000 is equipped with the EtherCAT protocol and installed by daisy chain connection which allows the flexibility in devices installation and reduces infrastructure and operation costs. All the modules can be set up as a star, line or ring network topologies. The isolation input and output design protect the ECAT-2000 against the harmful interference and environment. The ECAT-2051-32 is built-in isolated 32 digital inputs. Users can obtain the input status not only via the process data but also from its LED indicators. It has passed and verified by the conformance test tool; therefore eligible EtherCAT Master or configurator can operate it with ease and implement various applications easily.

Applications

• Semiconductor Tools
• Metal Forming
• Packaging
• Injection Molding
• Assembly Systems
• Printing Machines
• Robotics

Specifications

EMS Protection
EFT (IEC 61000-4-4) Signal: ±1 kV Class A; Power: ±1 kV Class A
ESD (IEC 61000-4-2) ± 4 kV Contact for Each Channel
Surge (IEC 61000-4-5) ± 1 kV Class A
Digital Input
Channels 32
Type Dry+Wet Contact
Sink/Source (NPN/PNP) Sink/Source
ON Voltage Level Dry: Close to GND
Wet: +10 V ~ +50 V
OFF Voltage Level Dry: Open
Wet: +4 V Max.
Isolation 3750 VDC
EtherCAT
Ports 2 x RJ-45
Distance Between Stations 100 m Max. (100Base-TX)
Data Transfer Medium Ethernet/EtherCAT cable (Min. CAT5), shielded
Cycle Time 1 ms
Distributed Clocks Yes
Power
Input Range +10 VDC ~ +30 VDC
Consumption 4 W Max.
Mechanical
Casing Plastic
Dimensions (mm) 31 x 157 x 126 (W x L x H)
Installation DIN-Rail
Environment
Operating Temperature -25 ~ +75 °C
Storage Temperature -30 ~ +80 °C
Humidity 10 ~ 90% RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

ECAT-2051-32     CR  EtherCAT Slave I/O Module with Isolated 32-ch DI (Dry, Wet) (RoHS)
