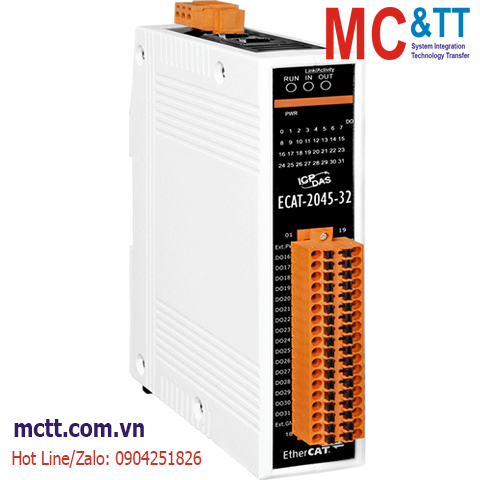

Module EtherCAT Slave 32 kênh đầu ra số DO ICP DAS ECAT-2045-32 CR

Chia sẻ:
Mã sản phẩm: ECAT-2045-32
Thương hiệu: ICP DAS
Tình trạng:

EtherCAT Slave I/O Module with Isolated 32-ch DO

Liên hệ
Mô tả

Module EtherCAT Slave 32 kênh đầu ra số DO ICP DAS ECAT-2045-32 CR

Features

  • On the fly processing: EtherCAT
  • Powerful MCU handles efficient network traffic
  • 2 x RJ-45 bus interface
  • Distance between Stations up to 100 m (100BASE-TX)
  • Support daisy chain connection
  • EtherCAT conformance test tool verified
  • Removable terminal block connector
  • LED indicators for the output status
  • Built-In 32 digital outputs
  • RoHS compliant
  • ESD Protection 4 KV Contact for each channel

Introduction

The ECAT-2000 is equipped with the EtherCAT protocol and installed by daisy chain connection which permits the flexibility in devices installation and reduces infrastructure and operation costs. All the modules can be deployed in the network topologies such as star, line or ring. The isolation input and output design protects the ECAT-2000 against the harmful interference and environment. The ECAT-2045-32 is built in isolated 32 digital outputs. Users can obtain the input and output status not only via the process data but also from its LED indicators. It has passed and verified by the conformance test tool, therefore eligible EtherCAT Master or configurator can manipulate it simply and implement your various applications easily.

ECAT-2045-32 ECAT-2045K-32
Digital output channels 32 Sink 32 Sink
State machine change:OP mode ->any mode Clear all DO output value Keep output values
Disconnected Clear all DO output value Keep output values

Applications

• Semiconductor Tools
• Metal Forming
• Packaging
• Injection Molding
• Assembly Systems
• Printing Machines
• Robotics

Specifications

EMS Protection
EFT (IEC 61000-4-4) Signal: ±1 kV Class A; Power: ±1 kV Class A
ESD (IEC 61000-4-2) ± 4 kV Contact for Each Channel
Surge (IEC 61000-4-5) ± 1 kV Class A
Digital Output
Channels 32
Type Open Collector (Sink)
Load Voltage +3.5 VDC ~ +50 VDC
Load Current 500 mA/Channel
Isolation 3750 Vrms
EtherCAT
Ports 2 x RJ-45
Distance Between Stations 100 m Max. (100Base-TX)
Data Transfer Medium Ethernet/EtherCAT cable (Min. CAT5), shielded
Cycle Time 1 ms
Distributed Clocks Yes
Power
Input Range +10 VDC ~ +30 VDC
Consumption 4 W Max.
Mechanical
Casing Plastic
Dimensions (mm) 31 x 157 x 126 (W x L x H)
Installation DIN-Rail
Environment
Operating Temperature -25 ~ +75 °C
Storage Temperature -30 ~ +80 °C
Humidity 10 ~ 90% RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

ECAT-2045-32     CR  EtherCAT Slave I/O Module with Isolated 32-ch DO (Sink, NPN) (RoHS)
