EtherCAT Slave I/O Module with Isolated 4-ch AO
Khi mua hàng tại website của chúng tôi, quý khách sẽ được:

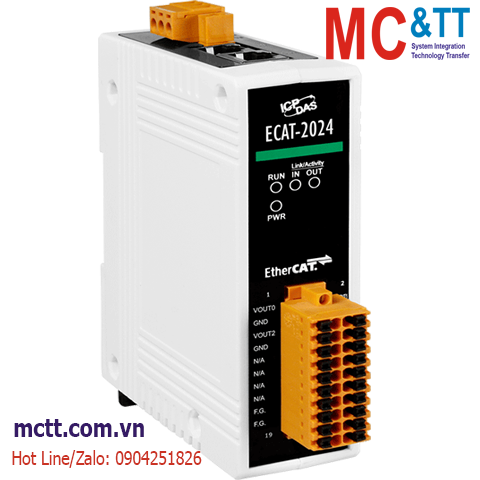

Module EtherCAT Slave 4 kênh đầu ra tương tự AO ICP DAS ECAT-2024 CR
Features
• On the fly processing: EtherCAT
• Powerful MCU handles efficient network traffic
• 2 x RJ-45 bus interface
• Distance between Stations up to 100 m (100BASE-TX)
• Support daisy chain connection
• EtherCAT conformance test tool verified
• Removable terminal block connector
• LED indicators for the I/O status
• 4 channels, 12-bit analog output
• RoHS compliant
• ESD Protection 4 KV Contact for each channel
Introduction
The ECAT-2000 is equipped with the EtherCAT protocol and installed by daisy chain connection which permits the flexibility in devices installation and reduces infrastructure and operation costs. All the modules can be deployed in the network topologies such as star, line or ring. The isolation input and output design protects the ECAT-2000 against the harmful interference and environment. The ECAT-2024 is built in 4 12-bit analog output channels. Users can obtain the output status via the process data. It has passed and verified by the conformance test tool, therefore eligible EtherCAT Master or configurator can manipulate it simply and implement your various applications easily.
Applications
• Semiconductor Tools
• Metal Forming
• Packaging
• Injection Molding
• Assembly Systems
• Printing Machines
• Robotics
Specifications
EMS Protection | |
---|---|
EFT (IEC 61000-4-4) | Signal: ±1 kV Class A; Power: ±1 kV Class A |
ESD (IEC 61000-4-2) | ± 4 kV Contact for Each Channel |
Surge (IEC 61000-4-5) | ± 1 kV Class A |
Analog Output | |
---|---|
Channels | 4 |
Range | ±5 V, ±10 V, 0 ~ +5 V, 0 ~ +10 V |
Resolution | 12-bit |
Accuracy | ±0.1% of FSR |
Zero Drift | ±30 μV/°C |
Span Drift | ±5 ppm/°C |
EtherCAT | |
---|---|
Ports | 2 x RJ-45 |
Distance Between Stations | 100 m Max. (100Base-TX) |
Data Transfer Medium | Ethernet/EtherCAT cable (Min. CAT5), shielded |
Cycle Time | 1 ms |
Distributed Clocks | Yes |
Power | |
---|---|
Input Range | +10 VDC ~ +30 VDC |
Consumption | 4 W Max. |
Mechanical | |
---|---|
Casing | Plastic |
Dimensions (mm) | 33 x 127 x 108 (W x L x H) |
Installation | DIN-Rail |
Environment | |
---|---|
Operating Temperature | -25 ~ +75 °C |
Storage Temperature | -30 ~ +80 °C |
Humidity | 10 ~ 90% RH, Non-condensing |
Download
Ordering Information
ECAT-2024 CR | EtherCAT Slave I/O Module with Isolated 4-ch AO (RoHS) |
