EtherCAT Slave I/O Module with 16-bit, 1-ch Strain Gauge
Khi mua hàng tại website của chúng tôi, quý khách sẽ được:

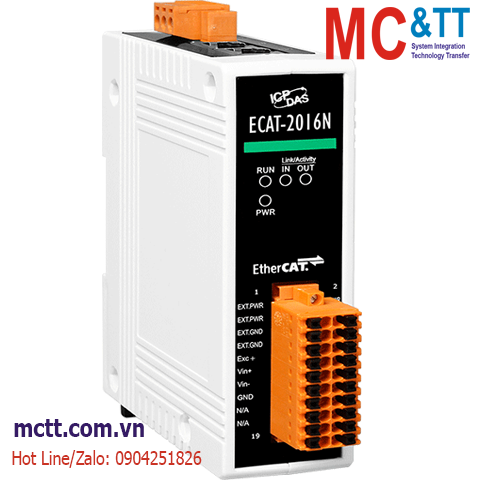

Module EtherCAT Slave 1 kênh đầu vào biến dạng (Strain Gauge, Load Cell) ICP DAS ECAT-2016N CR
Features
• On the fly processing: EtherCAT
• Powerful MCU handles efficient network traffic
• 2 x RJ-45 bus interface
• Distance between Stations up to 100 m (100BASE-TX)
• Support daisy chain connection
• EtherCAT conformance test tool verified
• Removable terminal block connector
• LED indicators
• 1 channel loadcell transducer Input
Introduction
The ECAT-2000 is equipped with the EtherCAT protocol and installed by daisy chain connection which permits the flexibility in devices installation and reduces infrastructure and operation costs. All the modules can be deployed in the network topologies such as star, line or ring. The isolation input and output design protects the ECAT-2000 against the harmful interference and environment. The ECAT-2016N is 1-channels analog input terminal permits direct connection of a resistor bridge. Users can obtain the input status via the process data. It has passed and verified by the conformance test tool, therefore eligible EtherCAT Master or configuration can manipulate it simply and implement your various applications easily.
Applications
• Semiconductor Tools
• Metal Forming
• Packaging
• Injection Molding
• Assembly Systems
• Printing Machines
• Robotics
Specifications
EMS Protection | |
---|---|
EFT (IEC 61000-4-4) | Signal: ±1 kV Class A; Power: ±1 kV Class A |
ESD (IEC 61000-4-2) | ± 4 kV Contact for Each Channel |
Surge (IEC 61000-4-5) | ± 1 kV Class A |
Strain Gauge, Load Cell Input | |
---|---|
Channels | 1 |
Type | Strain Gauge |
Range | ±1.25 V, ±600 mV, ±300 mV, ±125 mV, ±80 mV, ±60 mV, ±40 mV, ±30 mV, ±20 mV, ±15 mV, ±10 mV (Software selectable) |
Wiring | Full-Bridge |
Accuracy | ±0.1% of FSR |
Resolution | 16-bit |
Sampling Rate | 1k Hz per channel |
Individual Channel Configuration | YES |
Overvoltage Protection | ±35 VDC |
Excitation Voltage Output | |
---|---|
Channels | 1 |
Range | + 10 V |
EtherCAT | |
---|---|
Ports | 2 x RJ-45 |
Distance Between Stations | 100 m Max. (100Base-TX) |
Data Transfer Medium | Ethernet/EtherCAT cable (Min. CAT5), shielded |
Cycle Time | 1 ms |
Distributed Clocks | N/A |
Power | |
---|---|
Input Range | +10 VDC ~ +30 VDC |
Consumption | 4 W Max. |
Mechanical | |
---|---|
Casing | Plastic |
Dimensions (mm) | 33 x 127 x 108 (W x L x H) |
Installation | DIN-Rail |
Environment | |
---|---|
Operating Temperature | -25 ~ +75 °C |
Storage Temperature | -30 ~ +80 °C |
Humidity | 10 ~ 90% RH, Non-condensing |
Download
Ordering Information
ECAT-2016N CR | EtherCAT Slave I/O Module with 16-bit, 1-ch Strain Gauge (RoHS) |
