Mô tả

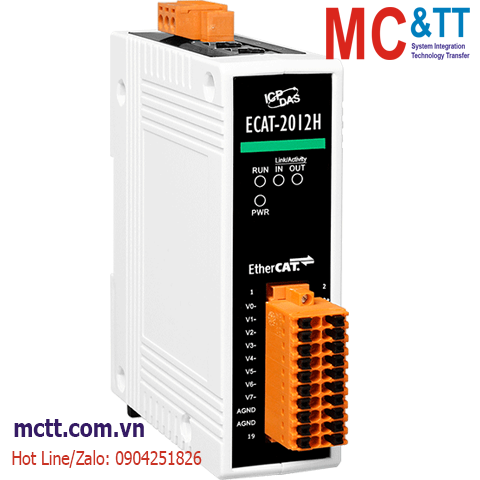

Module EtherCAT Slave 8/16 kênh đầu vào tương tự AI ICP DAS ECAT-2012H CR


• On the fly processing: EtherCAT
• Powerful MCU handles efficient network traffic
• 2 x RJ-45 bus interface
• Distance between Stations up to 100 m (100BASE-TX)
• Support daisy chain connection
• EtherCAT conformance test tool verified
• Removable terminal block connector
• LED indicators
• Built-in Analog Input: 16bit, 8-/16-ch
• RoHS compliant


The ECAT-2000 is equipped with the EtherCAT protocol and installed by daisy chain connection which permits the flexibility in devices installation and reduces infrastructure and operation costs. All the modules can be deployed in the network topologies such as star, line or ring. The ECAT-2012H is built in 16-bit, 8-ch differential inputs or 16-ch single-ended inputs. Users can obtain the input status via the process data. It has passed and verified by the conformance test tool, therefore eligible EtherCAT Master or configurator can manipulate it simply and implement your various applications easily.


• Semiconductor Tools
• Metal Forming
• Packaging
• Injection Molding
• Assembly Systems
• Printing Machines
• Robotics


EMS Protection
EFT (IEC 61000-4-4) Signal: ±1 kV Class A; Power: ±1 kV Class A
ESD (IEC 61000-4-2) ± 4 kV Contact for Each Channel
Surge (IEC 61000-4-5) ± 1 kV Class A
Analog Input
Channels 8 Diff/16 S.E
Type Voltage, Current
Range 0~10V, ±10 V, ±5 V, ±2.5 V, 0~ 20 mA, ±20 mA, 4~20 mA or ±4 ~20 mA (Software selectable)
Resolution 16-bit
Accuracy 0.05% of FSR
Sampling Rate 1k Hz per channel(Max. for 6 channel enable)
Overvoltage Protection ±35 VDC
Individual Channel Configuration Yes
Open Wire Detection Yes
Ports 2 x RJ-45
Distance Between Stations 100 m Max. (100Base-TX)
Data Transfer Medium Ethernet/EtherCAT cable (Min. CAT5), shielded
Cycle Time 1 ms
Distributed Clocks N/A
Input Range +10 VDC ~ +30 VDC
Consumption 4 W Max.
Casing Plastic
Dimensions (mm) 33 x 127 x 108 (W x L x H)
Installation DIN-Rail
Operating Temperature -25 ~ +75 °C
Storage Temperature -30 ~ +80 °C
Humidity 10 ~ 90% RH, Non-condensing




Ordering Information

ECAT-2012H     CR  EtherCAT Slave I/O Module with 16-bit, 16-ch/8-ch AI (RoHS)
