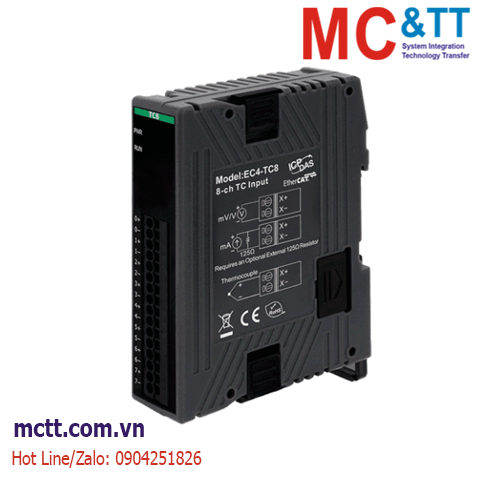

Module EtherCAT 8 kênh đầu vào cặp nhiệt điện ICP DAS EC4-TC8 CR
The EC4-TC8 is an industrial I/O module built in 8-ch Thermocouple intputs, based on the slim-type design. That provides 100Hz high-speed measurement and open wire detection for each channel. The module supports a variety of thermocouple input types, including Type J, K, T, E, R, S, B, N, C, L, M, and LDIN43710, and features an automatic cold-junction compensation function for all channels. It features the EtherCAT protocol, providing a system with higher scalability and fewer cables. Having passed consistency tests and verification, the EC4-TC8 can be easily operated by compatible EtherCAT MainDevice, facilitating the implementation of various applications.
Features
- On the fly processing: EtherCAT
- Removable terminal block connector
- Built-In 8-channel Thermocouple Intputs
- 100 Hz High-speed Sampling Rate for each Channel
- Open Wire Detection
- Individual Channel Configuration
Applications
| EMS Protection |
| EFT (IEC 61000-4-4) |
Signal: 1 KV Class B; Power: 1 KV Class B |
| ESD (IEC 61000-4-2) |
±4 kV Contact for Each Terminal |
| Analog Input |
| Channels |
8 |
| Type |
Thermocouple (J, K, T, E, R, S, B, N, C, L, M, LDIN43710) |
| Resolution |
16-bit |
| Accuracy |
±0.1 % of FSR ( 25℃ ) |
| Sampling Rate |
Fast Mode：100 Hz ( Per channel )
Normal Mode：1.5Hz ( per channel ) |
| Overvoltage Protection |
30 VDC |
| Individual Channel Configuration |
Yes |
| Open Wire Detection |
Yes |
| EtherCAT |
| Ports |
EtherCAT |
| Cycle Time |
100 us |
| Distributed Clocks |
Yes |
| Power |
| Input Range |
+24 VDC |
| Consumption |
1 W (max.) |
| Mechanical |
| Casing |
Plastic |
| Dimensions (mm) |
25 x 108 x 73 (W x L x D) |
| Installation |
DIN-Rail or Wall Mounting |
| Environment |
| Operating Temperature |
-25 ~ +75°C |
| Storage Temperature |
-30 ~ +80°C |
| Humidity |
10 ~ 90% RH, Non-condensing |
Specifications
Download
Datasheet
Documents
Ordering Information
| EC4-TC8 CR |
EtherCAT Slim I/O Module with 8-ch High Speed Thermocouple Inputs, 100 S/s (RoHS) |
