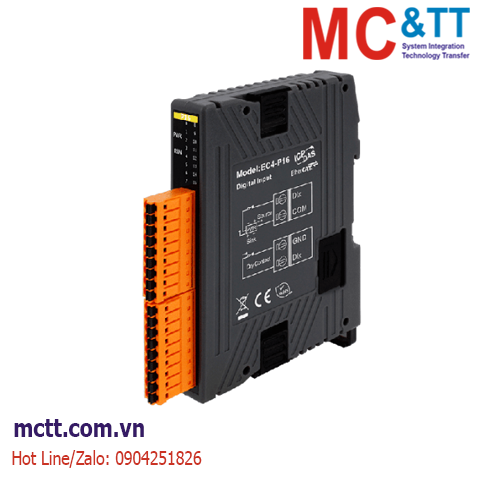

Module EtherCAT 16 kênh đầu vào số DI ICP DAS EC4-P16 CR
The EC4-P16 is an industrial I/O module designed with a slim-type form factor, featuring 16 isolated digital input channels. It features the EtherCAT protocol, providing a system with higher scalability and fewer cables. Users can check the current input status through LED indicators on the enclosure. In addition, the module has passed the test and verification of the conformance testing tool. It is also compatible with various standard EtherCAT MainDevices to enable diversified applications.
Features
- Interface: EtherCAT
- Removable terminal block connector
- LED indicators for the I/O status
- Built-In isolated 16-channel digital inputs
- Low Pass Filter
Applications
| EMS Protection |
| ESD (IEC 61000-4-2) |
±8KV(Air for Random Point) |
| Digital Input |
| Channels |
16 |
| Type |
Wet (Sink/Source) / Dry |
| ON Voltage Level |
Wet Contact：+19V~+30V
Dry Contact：Close to GND |
| OFF Voltage Level |
Wet Contact：+11V Max.
Dry Contact：Open |
| Isolation |
3000VDC |
| EtherCAT |
| Cycle Time |
100 μs |
| Distributed Clocks |
Yes |
| Power |
| Input Range |
+24 VDC |
| Consumption |
2 W |
| Mechanical |
| Casing |
Plastic |
| Dimensions (mm) |
17.5 x 108 x 73 (W x L x D)(excluding terminals) |
| Installation |
DIN-Rail or Wall Mounting |
| Environment |
| Operating Temperature |
-25 ~ +70°C |
| Storage Temperature |
-30 ~ +80°C |
| Humidity |
10 ~ 90% RH, Non-condensing |
Specifications
Download
Datasheet
Documents
Ordering Information
| EC4-P16 CR |
EtherCAT SubDevice Slim Module with Isolated 16-ch DI (RoHS) |
