Module mở rộng EtherCAT ICP DAS EC4-EP20E CR

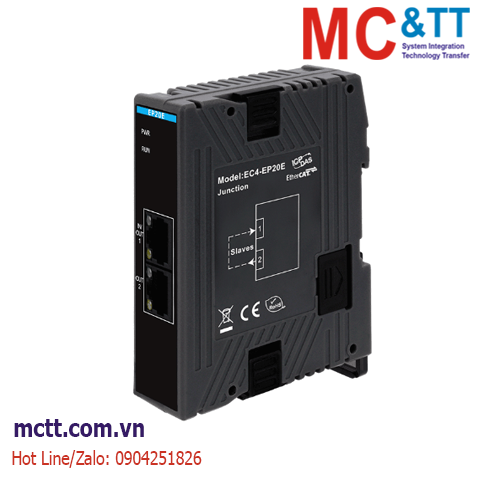

The EC4-EP20E is equipped with two EtherCAT RJ45 sockets, which can be used at the end of the EC4 series modules to enable daisy-chain and branch wiring configurations. The maximum extension distance is 100 meters.
Features
- Expanded EtherCAT network port
- 2 x RJ45 interface
- Distance between stations up to 100 m (100BASE-TX)
- Can be used for configuring an EtherCAT star topology
Applications
| EMS Protection |
| EFT (IEC 61000-4-4) |
Signal: 1 KV Class B |
| ESD (IEC 61000-4-2) |
±8KV(Air for Random Point) |
| EtherCAT |
| Ports |
EtherCAT, 2 x RJ45 (2 x OUT) |
| Distance Between Stations |
Max.100 m (100BASE-TX) |
| Data Transfer Medium |
Ethernet/EtherCAT Cable (Min. CAT 5), Shielded |
| Power |
| Input Range |
+24 VDC |
| Consumption |
1.5W Max |
| Mechanical |
| Casing |
Plastic |
| Dimensions (mm) |
31 x 108 x 74 (W x L x D) |
| Installation |
DIN-Rail or Wall Mounting |
| Environment |
| Operating Temperature |
-25 ~ +70°C |
| Storage Temperature |
-30 ~ +80°C |
| Humidity |
10 ~ 90% RH, Non-condensing |
Specifications
Download
Datasheet
Documents
Ordering Information
| EC4-EP20E CR |
2-Port EtherCAT Junction (RoHS) |
