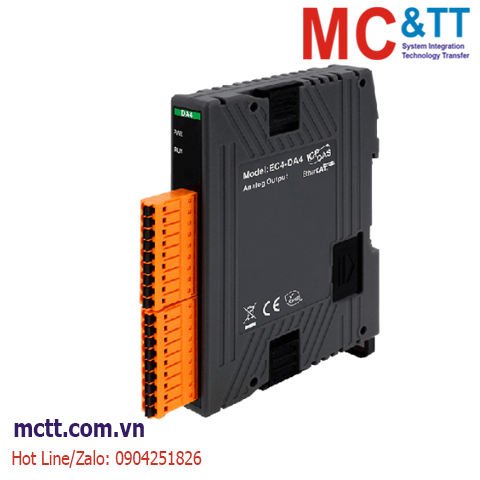

Module EtherCAT 4 kênh đầu ra tương tự AO ICP DAS EC4-DA4 CR
The EC4-DA4 is an industrial I/O module designed with a slim-type form factor, featuring isolated 12-bit, 4-channel analog outputs. It communicates over EtherCAT to deliver high scalability with fewer cables. Output data can be monitored via software. The module has passed conformance testing and works with a wide range of standard EtherCAT MainDevices for diverse applications.
Features
- Interface: EtherCAT
- Removable terminal-block connector
- Built-in isolation design
- 12-bit,4-channel analog outputs
Applications
| EMS Protection |
| ESD (IEC 61000-4-2) |
±8KV (Air for Random Point) |
| Analog Output |
| Channels |
4 |
| Range |
±5 V, ±10 V, 0 ~ 5V, 0 ~ 10V, 0 ~ 10 mA, 0 ~ 20 mA |
| Resolution |
12-bit |
| Accuracy |
±0.1% of FSR (25℃) |
| EtherCAT |
| Cycle Time |
100 μs |
| Distributed Clocks |
Yes |
| Power |
| Input Range |
+24 VDC |
| Consumption |
3.5 W |
| Mechanical |
| Casing |
Plastic |
| Dimensions (mm) |
17.5 x 108 x 73 (W x L x D)(excluding terminals) |
| Installation |
DIN-Rail or Wall Mounting |
| Environment |
| Operating Temperature |
-25 ~ +70°C |
| Storage Temperature |
-30 ~ +80°C |
| Humidity |
10 ~ 90% RH, Non-condensing |
Specifications
Download
Datasheet
Documents
Ordering Information
| EC4-DA4 CR |
EtherCAT SubDevice Slim Module with Isolated 12-bit, 4-ch Analog Outputs(Current and Voltage Output) (RoHS) |
