Module EtherCAT 8 kênh đầu vào tương tự AI ICP DAS EC4-AD8 CR

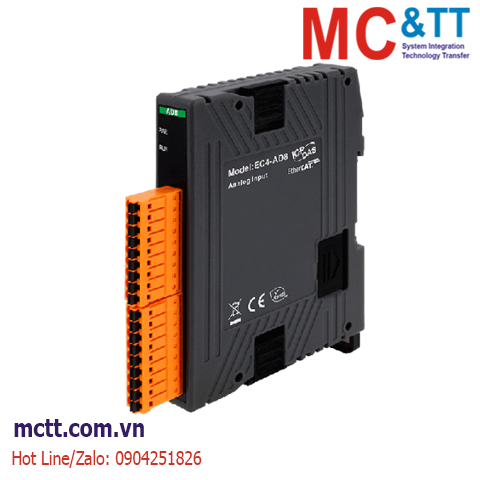

The EC4-AD8 is an industrial I/O module designed with a slim-type form factor, featuring isolated 16-bit, 8-channel analog inputs. It communicates over EtherCAT to deliver high scalability with fewer cables. Input data can be monitored via software. The module has passed conformance testing and works with a wide range of standard EtherCAT MainDevices for diverse applications.
Features
- Interface: EtherCAT
- Removable terminal-block connector
- Built-in isolation design
- 16-bit,8-channel differential analog inputs
Applications
| EMS Protection |
| ESD (IEC 61000-4-2) |
±8KV (Air for Random Point) |
| Analog Input |
| Channels |
8 Differential |
| Type |
Voltage |
| Range |
0~10V, ±10 V, ±5 V, ±2.5 V
(Software selectable) |
| Resolution |
16-bit |
| Accuracy |
0.05% of FSR |
| Sampling Rate |
1k Hz per channel |
| Overvoltage Protection |
±35 VDC |
| Individual Channel Configuration |
Yes (Range & Filter setting function is not supported) |
| Open Wire Detection |
No |
| EtherCAT |
| Cycle Time |
100 μs |
| Distributed Clocks |
Yes |
| Power |
| Input Range |
+24 VDC |
| Consumption |
1.5 W |
| Mechanical |
| Casing |
Plastic |
| Dimensions (mm) |
17.5 x 108 x 73 (W x L x D) (excluding terminals) |
| Installation |
DIN-Rail or Wall Mounting |
| Environment |
| Operating Temperature |
-25 ~ +70°C |
| Storage Temperature |
-30 ~ +80°C |
| Humidity |
10 ~ 90% RH, Non-condensing |
Specifications
Download
Datasheet
Documents
Ordering Information
| EC4-AD8 CR |
EtherCAT SubDevice Slim Module with Isolated 16-bit, 8-ch Analog Inputs (RoHS) |
