Card ISA 48 kênh vào/ra số DI/DO + 2 kênh Timer/Counter/Frequency ICP DAS DIO-48 CR

Chia sẻ:
Mã sản phẩm: DIO-48
Thương hiệu: ICP DAS
Tình trạng:

ISA Bus, 48-ch Digital I/O Board

Liên hệ
Mô tả

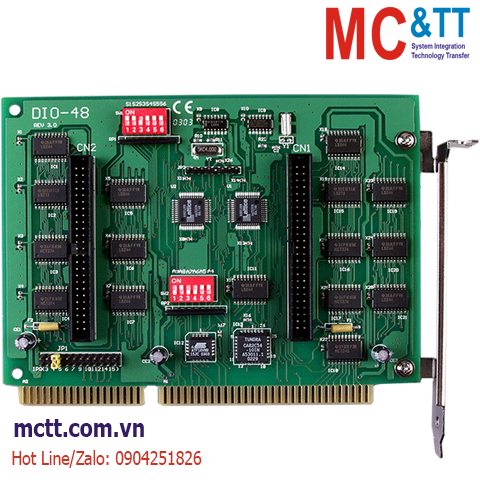

Card ISA 48 kênh vào/ra số DI/DO + 2 kênh Timer/Counter/Frequency ICP DAS DIO-48 CR

Features

  • Support the +5V PCI bus for PIO-D48
  • Support the +3.3/+5 V PCI bus for PIO-D48U/D48SU
  • Support the ISA bus
  • 48 channels of digital I/O
  • Bi-direction programmable I/O ports under software control
  • All I/O lines buffered on the board
  • Six 8-bit bi-direction I/O ports
  • SMD, short card
  • Connects directly to DB-24PR, DB-24PD, DB-24RD, DB-24PRD, DB-16P8R,
  • DB-24POR, DB-24SSR, DB-24C or any OPTO-22 Compatible daughter boards.
  • One 32-bit programmable internal timer
  • One DB37 connector and one 50-pin box header for PIO-D48U/PEX-D48
  • One SCSI II 100-pin connector for PIO-D48SU
  • One 16-bit event counter
  • Interrupt source: 4-channel
  • Card ID function for PIO-D48SU/D48U/PEX-D48
  • Pull-up or pull-down resistors on I/O lines
  • Emulate two industrial-standard 8255 PPI ports (mode 0)
  • Buffer output for higher driving capability
  • DIO response time is about 1 μs (1 MHz) for PIO-D48U/D48SU
  • DIO response time is about 500 kHz for PEX-D48
  • DO status readback

Introduction

The PIO-D48U/D48SU and PEX-D48 is the new generation product that ICP DAS provides to meet RoHS compliance requirement and is designed as completely compatible with the PIO-D48. Users can replace the PIO-D48 by the PIO-D48U/PIO-D48SU/PEX-D48 directly without software/driver modification.

The PIO-D48U/D48SU supports 3.3 V/5 V PCI bus, while the PEX-D48 supports PCI Express bus. These cards provide 48 TTL digital I/O lines, and these lines are grouped into six 8-bit bi-direction ports. Every three 8-bit ports are grouped as port A (PA), port B (PB) and port C (PC) on a connector, and the port C can be split into 2 nibble-wide(4-bit) parts. All ports are configured as inputs upon power-up or reset.

The PIO-D48U/D48SU and PEX-D48 also adds a Card ID switch and pull-high/ pull-low resisters for DI on board. Users can set Card ID on a board and recognize the board by the ID via software when using two or more PIO-D48U/PIO-D48SU/PEX-D48 cards in one computer. The pull-high/ pull-low resisters allow the DI status to be specified when the DI channels are unconnected; the DI status will remain in high or low status other than floating.

These cards support various OS such as Linux, DOS, Windows 98, Windows 2000, Windows NT, 32-/64-bit Windows XP/2003/2008/Vista/7 and Windows 8. It also provides the DLL and Active X control, and various language sample programs in Turbo C++, Borland c++, Microsoft C++, Visual C++, Borland Delphi, Borland C++ Builder, Visual Basic, C#.NET, Visual Basic.NET and LabVIEW to help users to quickly and easily develop their applications.

Applications

  • Programmable voltage source
  • Programmable current sink
  • Harsh environment operation
  • Process control

Click to view the Introduction of https://mctt.vn/isa-icp-das

Specifications

Hardware
Connector Female DB37 x 1
50-pin box header x 1
Digital Input
Channels 48 (Bi-Direction)
Type 5 V/TTL
Sink/Source (NPN/PNP) Sink: 64 mA @ 0.8 V
Source: 32 mA @ 2.0 V
ON Voltage Level Logic 1: 2.0 V Min.
OFF Voltage Level Logic 0: 0.8 V Max.
Response Speed 1 MHz (Typical)
Trigger Mode Static Update
Digital Output
Channels 48 (Bi-Direction)
Type 5 V/TTL
Operation Mode Static Update
Load Voltage Logic 0: 0.4 V Max.
Logic 1: 2.4 V Min.
Response Speed 1 MHz (Typical)
Timer/Counter/Frequency
Channels 2 (Event Timer x 1/32-bit Timer x 1)
Type 5 V/TTL
Resolution 16-bit
Reference Clock Internal: 4 MHz
PC Bus
Type ISA
Data Bus 8-bit
Power
Consumption 800 mA @ +5 V
Mechanical
Dimensions (mm) 112 x 172 x 22 (W x L x D)
Environment
Operating Temperature 0 ~ +60°C
Storage Temperature -20 ~ +70°C
Humidity 5 ~ 85% RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

DIO-48     CR  ISA Bus, 48-ch Digital I/O Board (RoHS)
