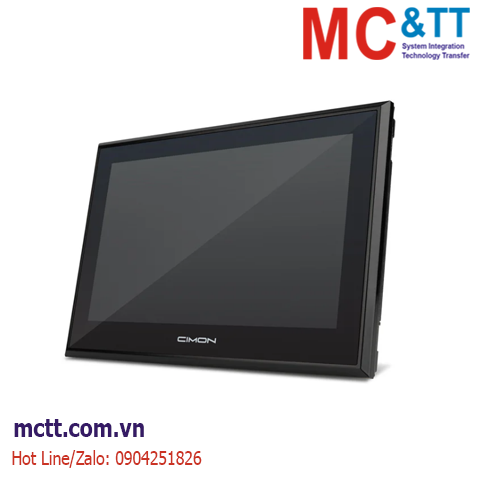

Màn hình cảm ứng HMI/Xpanel 10 inch Cimon CM-eXT2-10W-R-DE (10" TFT, DC24V, 2 Serial, 1 Ethernet)
Introducing the Xpanel eXT and nXT series, our advanced industrial HMI(Human Machine Interface) solutions that set a new standard for performance and usability. Paired with our innovative Canvas HMI software, the Xpanel eXT and nXT series offer a seamless and efficient user experience by combining industrial-grade touch technology, powerful embedded OS hardware with a quad-core CPU, and an intuitive runtime platform. The Xpanel eXT and nXT series are engineered to optimize and streamline industrial operations. Elevate your HMI experience today.
Its all-aluminum enclosure provides rugged durability and resistance to extreme temperatures and harsh conditions.
The Xpanel nXT series is UL Class 1 Div 2 certified and UL listed for type 4X and type 12, making it suitable for use in hazardous locations. In addition, its front panel is IP68 rated for protection against dust and water ingress, and its rear panel is IP20 rated.
A sunlight readable display, with up to 1000 nits of brightness, makes the Xpanel nXT series perfect for outdoor applications. This allows for clear visibility even in bright ambient lighting, ensuring that operators can always see important information and make accurate decisions.
The capacitive touch interface of the Xpanel nXT series is intuitive and easy to use, providing a smooth and responsive user experience. With a wide temperature range of -20 to 65 degrees Celsius, you can use it in any environment.
Tính năng
- Our Flagship HMI display,
- Industrial-grade capacitive touch screen,
- Quad-core CPU, embedded OS
- a rugged IP68, UL Type 4X/12 rated front panel with aluminum case.
- TUL Class 1, Division 2 certified,
- Compatible with CIMON Canvas HMI visualization software, which is user-friendly for all skill levels.
Thông số kỹ thuật
|
Enclosure |
Front |
Aluminum |
| Rear |
Plastic |
| LCD Size |
10.1 inch Wide TFT Color |
| Colors |
16.7M |
| Resolution |
1280 x 800 WXGA (16:10) |
| Effective Display Area (W x H) |
216.96 x 135.60 mm |
| PPI |
149 |
| Backlight |
LED |
| Luminance |
500 cd/m² |
| Contrast Ratio |
800:1 |
| Backlight Life |
50,000 hours |
| Touch Panel |
5 wire resistive |
| Touch Panel Accuracy |
Active Area Width (X) ±2%, Height (Y) ±2% |
| Display Orientation |
Landscape (Standard, 180°), Portrait (90°, 270°) |
| Memory |
2 GB LPDDR4 |
| Storage |
8 GB eMMC |
| SD Card |
- |
| COM 1 |
RS-422/485 |
| COM 2 |
RS-232C |
| Ethernet |
One 10/100/1000 port |
| USB Host |
One Type A |
| Tool Port |
One USB-C Device |
| Audio |
- |
| Rated Voltage |
24 VDC, Class 2 |
| Inrush Current |
30 A maximum |
| Power Consumption |
15 W (Max: 16 W) |
| Operating System |
Embedded Linux |
| Project Memory |
250 MB |
| User Memory |
4 GB |
| Realtime Clock |
Realtime clock built into panel, backed up for 10 years at 25°C |
| Acknowledgement Sound |
Electronic buzzer |
|
Agency Approvals |
UL |
UL61010-1 / UL61010-2-201 (E231117) |
| CE |
Electromagnetic Compatibility Directive 2014/30/EU (EMC) |
| FCC |
The 47 CFR, Part2, Part15 and Part 18 Of FCC Requirement |
| KC |
Registration of Broadcasting and Communication Equipments |
| Protection Class |
Front: IP66, NEMA Type: 4X, 12 |
Thông tin đặt hàng
10" TFT, DC24V, 2 Serial, 1 Ethernet, No Audio, No Micro SD slot
