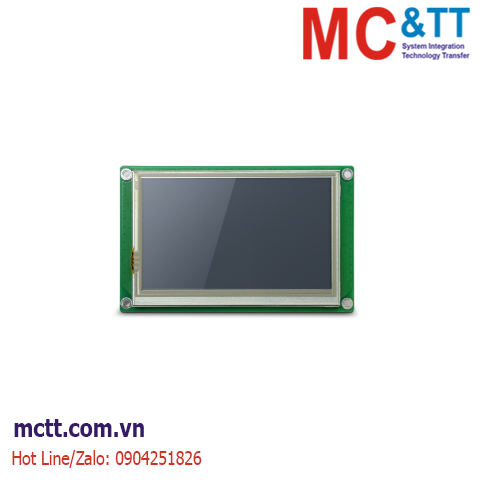

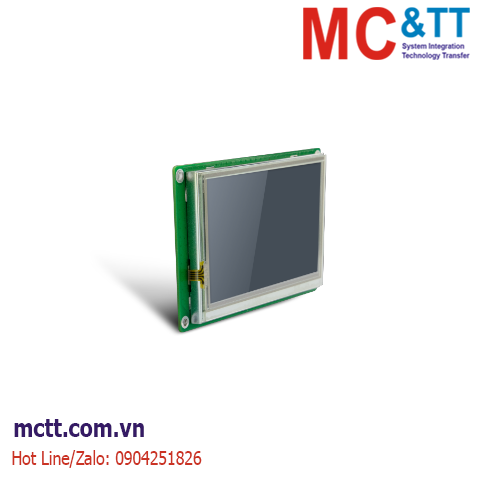

Màn hình cảm ứng HMI 4.3 inch Kinco MR043 (2 COM, 1 USB Slave)

Chia sẻ:
Mã sản phẩm: MR043
Thương hiệu: Kinco
Tình trạng: Còn hàng

4.3" 256K color, 480*272 high resolution, 2 COM ports, 1 USB SLAVE, memory 64MB

Liên hệ
Mô tả

Màn hình cảm ứng HMI 4.3 inch Kinco MR043 (2 COM, 1 USB Slave)

Tính năng

  • 4.3", high-definition display, 256K color
  • Main frequency 792MHz, memory 64MB
  • The new generation of Kinco DTools configuration software is powerful and easy to use
  • The rear installation fixation method can perfectly fit the surface of the equipment and integrate with the equipment
  • Customers can design masks according to their own needs, which further highlights the grade of the equipment.

Thông số kỹ thuật

 Performance specification

 Display size

4.3" TFT

 Display area

95.04mm(W)*53.86mm(H)

 Resolution

480*272 pixels

 Display color

256K color

 Display angle of view

70/70/50/70(left/right/up/down)

 Contrast ratio

 500:1

 Backlight

 LED

 Brightness

 450cd/m2

 Backlight life

50000 hours

 Touch Panel

 4 wire precision resistance network (surface hardness 4H)

 CPU

 ARM RISC 32Bit 792MHz

 Storage

128MB Flash Memory+64MB Memory

 RTC

 Built-in real time clock

 Extensible memory

None

 Printer port

Serial port
Program download USB Slave (Micro USB)/ Ethernet
Ethernet None
Communication port COM0: RS485; COM2: RS232

Electrical specification

Input power supply

DC10V~DC28V

Rated power

2W @24V DC

Allowable loss of power

 <3ms

Insulation resistance

Over 50MΩ@500V DC

Hi-pot test

500V AC 1 minute

 Structure specification

PCB spraying None

Housing material

No housing

Dimensions 122*75*15.1(mm)
Installation hole size 115*66(mm)

Weight

About 0.12Kg

 Environment specification

Operating temperature

 0~50℃

 Operating humidity

 10~90% non-condensing

 Storage temperature

 -20~60℃

 Storage humidity

 10~90% non-condensing

 Shockproof test

 10~500Hz, 30m/s², X, Y, Z direction/hour

 Cooling method

 Natural air cooling

 Certification

 Degree of protection

Conforming to IP65 certification (4208一93)

CE certification

CE certified (test standards: EN IEC61000-6-4:2019, EN IEC61000-6-2:2019)

Software

Configuration software

Kinco DTools V3.5.4.2 and above

Thông tin đặt hàng

  • MR043

4.3" 256K color, 480*272 high resolution, 2 COM ports, 1 USB SLAVE, memory 64MB

Tài liệu

Datasheet

User Manual

Software

Kinco DTools V4.1.0.3(Build230705)
