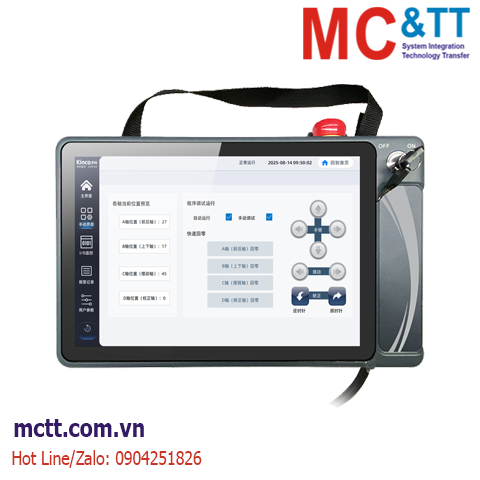

Màn hình HMI cầm tay 10.1 inch Kinco SZ10PES
Tính năng
- 10.1 inches, 800*1280 high-definition display with 16 million true colors;
- 85/85/85/85 wide viewing angle display;
- Quad-core 1.5GHz CPU with 512MB memory and 4GB flash storage;
- Single Ethernet port plus three serial ports；
- Based on the latest Kinco DToolsPro configuration software & EdgeAccess2 remote maintenance platform.
Thông số kỹ thuật
| Model |
SZ10PES |
|
Performance specification |
| Display size |
10.1 " TFT |
| Display area |
133(H)×215(V) |
|
Resolution |
1920*1200pixel |
|
Display color |
16.77M true color |
| Dispaly viewing angle |
85/85/85/85(L/R/U/D) |
| Contrast ratio |
600:1 |
| Brightness |
230cd/m² |
| Backlight |
LED |
| Backlight life time |
30000 hours |
| Programmable key |
16 (Optional) |
| Emergency stop switch |
1 Dual-oop emergency stop switch |
| 3 choice switch |
1 key rotary switch |
| Holding switch |
1 Dual-oop three-segment enable switch |
| RFID |
Built-in |
| Touch panel |
Reinforced glass capacitive touch panel |
| CPU |
Quad-core ARM 1.8GHz |
| Memory |
8GB eMMC+ 1GB RAM |
| RTC |
Built-in |
| Expandable memory |
1 USB Host |
| Print port |
USB Host/Serial port |
|
Ethernet |
LAN0:10/100 Mbps |
| Program download |
U disk/Ethernet |
| Network access |
Ethernet |
| VPN |
Support HMI remote upload, download and screen monitoring, support PLC transparent transmission program upload, download and monitoring |
|
COM port |
COM0:RS485/RS422;COM2:RS232 |
|
Electrical specification |
|
Input power supply |
DC23.2V～DC26.4V(built-in isolation power supply) |
|
Power Comsumption |
20W@DC24V |
| Allowable loss of power |
<3ms |
|
Insulation resistance |
Over 50MΩ@500V DC |
|
Hi-pot test |
500V AC 1 minute |
|
Structure specification |
| PCB |
Yes |
| Shell material |
Engineering plastic |
| Dimensions |
300.64*187.54*69.69 |
| Cable(m) |
10m flexible cable(standard)，7m spring cable(optional) |
| Junction |
192*138 |
| Installation |
Buckle installation or VESA bracket(75x75mm) |
|
Environment specification |
|
Operating temperature |
-10~60℃ |
|
Operating humidity |
10~90%RH (Non-condensing) |
|
Storage temperature |
-20~70℃ |
|
Storage humidity |
10～90% non-condensing |
|
Shockproof test |
10~500Hz, 30m/s², X,Y,Z direction/hour |
|
Cooling method |
Natural air cooling |
|
Certification |
|
Panel protection grade |
IP62 certifile |
|
CE certification |
EN IEC 61000-6-2:2019,EN IEC 61000-6-4:2019 |
| Configuration software |
Kinco DToolsPro |
Thông tin đặt hàng
Handheld HMI, 10.1", 16.77M color, 1920*1200 resolution, 1USB host, 1 Ethernet with holding switch
