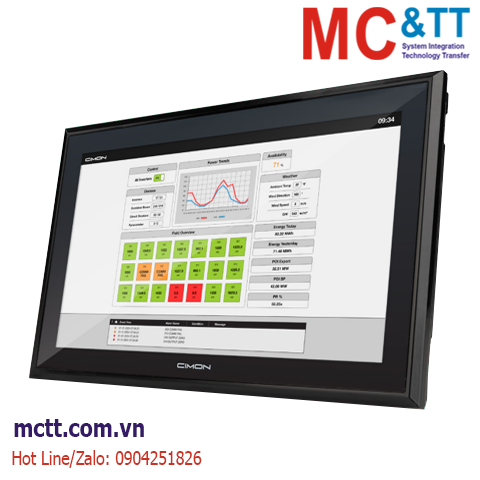

Màn hình cảm ứng HMI 15.6 inch Cimon CM-eXT2-15W-RH-DF (2 COM, 2 Ethernet, Micro SD slot, Audio)
The 15” eXT2 Series Xpanel HMI combines a high-resolution display, faster processing power, and a slim, durable design tailored for industrial applications. Built for demanding environments, it offers robust performance and reliability. The Advanced (DF) model adds extra connectivity and rugged protection, ideal for versatile, high-demand use.
Tính năng
- Wide operating temperature (-20 – +70 °C)
- High resolution, wide-screen display
- Quad-core high-speed processor
- 2GB of RAM; 8GB of Storage
- Slim profile & light weight
- Resistive touch screen
- 1 USB-C port, 2 serial ports, dual Ethernet ports, 1 line-out audio port, and 1 microSD card slot
- High brightness with UV coating
- Canvas software
- VNC Compatibility
- FDA 21 CFR Part 11 Compliance
- Embedded SQLite Database
- Email and text notifications
Supported Protocols
- Client Device (Ethernet): Allen Bradley EtherNet/IP, ODVA EtherNet/IP, Siemens S7, Mitsubishi MELSEC, Modbus TCP, OPC UA, Omron FINS, Proface GPEthernet, Fatek FBs, LSIS FEnet, CIMON PLC
- Client Device (Serial): Allen Bradley DF-1, Mitsubishi MELSEC, Modbus RTU, LSIS Cnet, Omron HostLink, Panasonic FP7, Yokogawa FA M3, CIMON PLC
- Server Device (Ethernet): EtherNet/IP, Modbus TCP, MQTT JSON Publisher, OPC UA
- Server Device (Serial): Modbus RTU
Thông số kỹ thuật
|
Model |
Base
CM-eXT2-15W-R-DE |
Advanced
CM-eXT2-15W-R-DF |
High-Brightness
CM-eXT2-15W-RH-DF |
| Enclosure |
Front |
Aluminum |
| Rear |
Plastic |
Aluminum |
| LCD Size |
15.6 inch Wide TFT Color |
| Colors |
16.7M |
| Resolution |
1920 x 1080 WXGA (16:9) |
| Effective Display Area (W x H) |
344.16 x 193.59 mm |
| PPI |
141 |
| Backlight |
LED |
| Luminance |
450 cd/m² |
1200 cd/m² |
| Contrast Ratio |
800:1 |
| Backlight Life |
50,000 hours |
| Touch Panel |
5 wire resistive |
| Touch Panel Accuracy |
Active Area Width (X) ±2%, Height (Y) ±2% |
| Display Orientation |
Landscape (Standard, 180°), Portrait (90°, 270°) |
| Memory |
2 GB LPDDR4 |
| Storage |
8 GB eMMC |
| SD Card |
- |
1 x MicroSD card slot |
| COM 1 |
RS-422/485 |
| COM 2 |
RS-232C |
| Ethernet |
1x 10/100/1000 port |
2x 10/100/1000 port |
| USB Host |
1x Type A |
| Tool Port |
1x USB-C |
| Audio |
- |
1x Line-out port |
| Rated Voltage |
24 VDC, Class 2 |
| Inrush Current |
30 A maximum |
| Power Consumption |
23.5 W (Max: 25 W) |
35W (Max: 36.6W) |
| Operating System |
Embedded Linux |
| Project Memory |
250 MB |
| User Memory |
4 GB |
| Realtime Clock |
Realtime clock built into panel, backed up for 10 years at 25°C |
| Acknowledgement Sound |
Electronic buzzer |
| Agency Approvals |
UL |
UL61010-1 / UL61010-2-201 (E231117) |
| CE |
Electromagnetic Compatibility Directive 2014/30/EU (EMC) |
| FCC |
The 47 CFR, Part2, Part15 and Part 18 Of FCC Requirement |
| KC |
Registration of Broadcasting and Communication Equipments |
| Protection Class (Front) |
Front: IP66, NEMA Type: 4X, 12 |
IP68, NEMA Type 4X, 12 |
| Operating Temperature |
0 – 65°C (32 –149°F) |
-20 – +70°C (-4 – +158°F) |
| Storage Temperature |
-25 – +75°C (-13 – +167°F) |
| Operating Humidity |
10–90% RH (below 29℃, not condensed) |
| Storage Humidity |
10–90% RH (below 39℃, not condensed) |
Thông tin đặt hàng
15.6", Widescreen, 16:9 1920x1080, Resistive touch, DC24V, 2 Serial, 2 Ethernet, 1 Audio, 1 Micro SD slot, High brightness, IP68, -20℃ ~ 70℃
