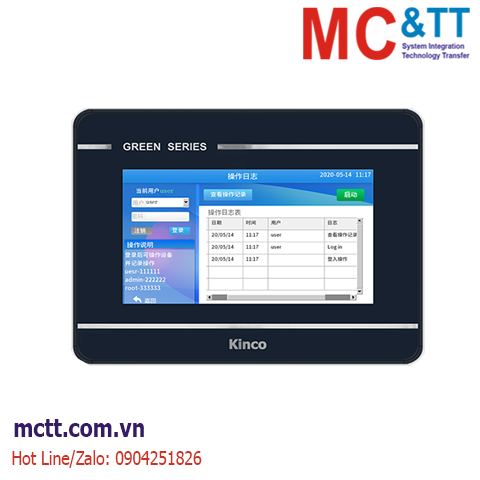

Màn hình cảm ứng HMI 4.3 inch Kinco GL2043HE (2 COM, 1 USB Host, 1 Ethernet)
Tính năng
- 4.3-inch 800*480 high-definition display with 16.77 million true colors
- 80/80/80/80 wide viewing angle display.
- Dual-core CPU with 256MB memory and 4GB flash storage.
- Single Ethernet port and dual serial ports and a USB Host, offering rich interfaces.
- Based on the latest EdgeAccess 2.0 version, enjoy seamless loT connectivity.
- Based on the latest Kinco Dtools Pro configuration software.
Thông số kỹ thuật
|
Performance specification |
|
Display size |
4.3" TFT |
| Display area |
95.04(H)×54.71(V) |
|
Resolution |
800*480pixel |
|
Display color |
16.77M color |
| Visual angle |
80/80/80/80(L/R/U/D) |
| Contrast ratio |
1200:1 |
|
Backlight |
LED |
|
Brightness |
350cd/m2 |
|
Backlight life |
More than 30000 hours |
|
Touch Panel |
4 line precision resistance network (surface hardness 4H) |
|
CPU |
ARM Cortex-A7 duad-core 1GHz |
|
Memory |
4GB eMMC+256MB RAM |
|
RTC |
Built-in |
|
Printer port |
USB Host/ Serial port |
|
Ethernet |
LAN0:10/100 Mbps |
|
Program download |
USB Slave(Type-C)/U disk/Ethernet port |
| Network access |
Ethernet |
|
COM port |
COM0:RS232/RS485/RS422;COM2:RS232 |
|
Electrical specification |
|
Input power supply |
DC18V～DC28V |
|
Rated power |
2W @24V DC |
| Allowable loss of power |
<3ms |
|
Insulation resistance |
Over 50MΩ@500V DC |
|
Hi-pot test |
500V AC 1 minute |
|
Structure specification |
| PCB coating |
None |
|
Shell material |
Engineering plastic |
|
Dimensions(mm) |
132*102*33mm |
|
Panel cutout(mm) |
119*93 |
|
Weight |
0.21KG |
|
Environment specification |
|
Operating temperature |
0～50℃ |
|
Operating humidity |
10～90% non-condensing |
|
Storage temperature |
-20～60℃ |
|
Storage humidity |
10～90% non-condensing |
|
Shockproof test |
10~500Hz, 30m/s², X,Y,Z direction/hour |
|
Cooling method |
Natural air cooling |
|
Certification |
|
Degree of protection |
Conforming to IP65 requirements |
|
CE certification |
EN61000-6-4:2007+A1:2011, EN61000-6-2:2005 |
|
Software |
|
Configuration software |
Kinco DToolsPro |
Thông tin đặt hàng
4.3" 16.77 million true color, 800*480 resolution, dual-core CPU, flash memory 4G, memory 256MB, 2 COM ports, standard 1 USB HOST, 1 network ports
Tài liệu
Datasheet
User Manual
Software
Kinco DToolsPro V1.3.0(Build230719)
