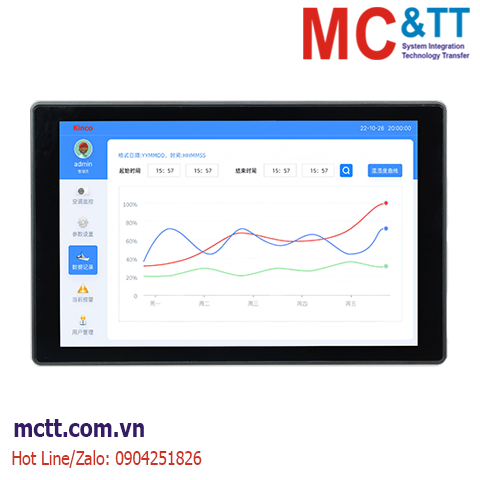

Màn hình cảm ứng HMI 10.1 inch Kinco F2100HE2-PX (3 COM, 1 USB Host, 2 Ethernet)
Tính năng
- 10.1" , 16.77 million true colors;
- Quad-core 1.8GHz CPU paired with 1 GB of memory, complemented by 8GB of flash memory.
- Supports three serial ports, dual network ports, and comes with standard three-proofing and power isolation.
- Based on the latest EdgeAccess 2.0 version, enjoy seamless loT connectivity.
- Based on the latest Kinco Dtools Pro configuration software.
Thông số kỹ thuật
|
Performance specification |
|
Display size |
10.1" TFT |
| Display area |
135.36(H)×216.58(V) |
|
Resolution |
1280*800pixel |
|
Display color |
16.77M color |
| Visual angle |
85/85/85/85(L/R/U/D) |
| Contrast ratio |
800:1 |
|
Backlight |
LED |
|
Brightness |
350cd/m2 |
|
Backlight life |
More than 30000 hours |
|
Touch Panel |
Reinforced glass capacitive touch panel |
|
CPU |
Quad-core ARM 1.8GHz |
|
Memory |
8GB eMMC+1GB RAM |
|
RTC |
Built-in |
|
Extensible memory |
1 USB Host |
|
Printer port |
USB Host/ Serial port |
|
Ethernet |
LAN0:10/100 Mbps; Lan1:10/100 Mbps |
|
Program download |
USB Slave(Type-C)/U disk/Ethernet port |
|
COM port |
COM0:RS232/RS485/RS422;COM1:RS485;COM2:RS232 |
|
Electrical specification |
|
Input power supply |
DC18V～DC28V(with isolation) |
|
Rated power |
7W @24V DC |
| Allowable loss of power |
<3ms |
|
Insulation resistance |
Over 50MΩ@500V DC |
|
Hi-pot test |
500V AC 1 minute |
|
Structure specification |
| PCB coating |
Yes |
|
Shell material |
Metal |
|
Dimensions(mm) |
249*159*32.5mm |
|
Panel cutout(mm) |
192*138 |
|
Installation |
Buckle installation or VESA bracket(75x75mm) |
|
Environment specification |
|
Operating temperature |
0～50℃ |
|
Operating humidity |
10～90% non-condensing |
|
Storage temperature |
-20～60℃ |
|
Storage humidity |
10～90% non-condensing |
|
Shockproof test |
10~500Hz, 30m/s², X,Y,Z direction/hour |
|
Cooling method |
Natural air cooling |
|
Certification |
|
Degree of protection |
Conforming to IP65 certification (4208-93) |
|
CE certification |
EN IEC61000-6-4:2019，EN IEC61000-6-2:2019 |
|
Software |
|
Configuration software |
Kinco DToolsPro |
Thông tin đặt hàng
10.1" 16.77 million true color, 1280*800 resolution, quad-core CPU, flash memory 8G, memory 1G, 3 COM ports, standard 1 USB HOST, 1 USB SLAVE, 2 network ports
Tài liệu
Datasheet
User Manual
Software
Kinco DToolsPro V1.3.0(Build230719)
