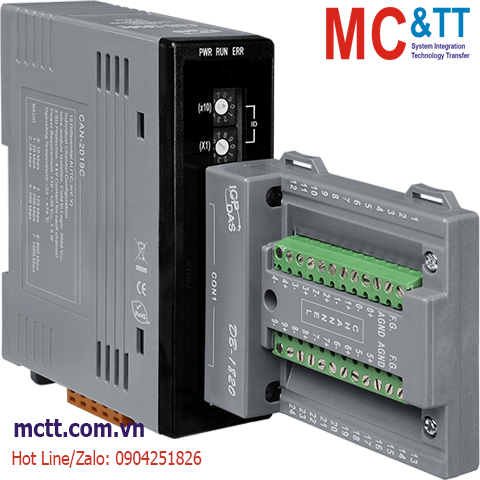

Module CANopen Slave 10 kênh AI Thermocouple ICP DAS CAN-2019C/S CR

Feature

  • NMT Slave
  • Provide Pair-Connect function
  • Provide default EDS file
  • ESD Protection 4KV Contact for each channel
  • Support Power supply 10 ~30 VDC
  • Support CiA-301 v4.02, CiA-401 v2.1
  • Support PDO Mapping

Introduction

CAN-2019C module follows the DS-301 version 4.02 and DSP-401 version 2.1. You can access the thermocouple input status and set the configuration by using standard CANopen protocol. CAN-2019C has passed the validation of the CiA CANopen Conformance Test tool. Therefore, you can use it with standard CANopen master easily by applying the EDS file. The CAN-2019C is a 10-channel universal analog input CANopen slave module with voltage and current input types. It provides extremely accurate thermocouple measurement and automatically cold-junction compensation for each channel. By owing to the CANopen masters of ICP DAS, you can quickly build a CANopen network to approach your requirements.

Application

Specifications

CPU Module
Watchdog Timer Hardware watchdog
LED Indicators
Status 3 LEDs to PWR, RUN and ERR
Analog Input
Channels 10 (Differential)
Sensor Type +/- 15mV, +/- 50mV, +/- 100mV, +/- 500mV, +/- 1V, +/- 2.5V, +/- 5V, +/- 10V
+/-20mA,(Requires Optional External 125 Ohm Resistor)
Thermocouple (J, K, T, E, R, S, B, N, C)
Resolution 16-bit
Accuracy +/-0.1% FSR
Sampling Rate 10 Samples/Sec. (Total)
Input Impedance >400 kΩ
Common Mode Rejection 86 dB Min.
Normal Mode Rejection 100 dB
Overvoltage Protection 240 Vrms
Individual Channel Configuration Yes
Open Wire Detection Yes
Zero Drift +/- 10 μV/ °C
Span Drift +/-25 ppm/ °C
Isolation 3000 VDC
CANopen
Baud Rate 10 k ~ 1 M
Isolation 3000 VDC for DC-to-DC, 2500 Vrms for photo-couple
Terminal Resistor Built-in 120Ω
Protocol CiA 301 v4.02, CiA 401 v2.1
Node ID 1 ~ 99
No. of PDOs 10 RxPDO , 10 TxPDO
PDO Mode Event-triggered, remotely-requested, Cyclic and acyclic SYNC
Error Control Node Guarding protocol / Heartbeat Producer
NMT Slave
EMCY Message Yes
Power
Consumption 1.5 W
Mechanical
Dimensions (mm) 33 x 99 x 78 ( W x L x H )
Installation DIN-Rail
Environment
Operating Temperature -25 ~ +75 °C
Storage Temperature -30 ~ +80 °C
Humidity 10 ~ 90% RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

CAN-2019C/S     CR  CANopen Slave Module of 10-channel Universal AI (RoHS)
Includes a DB-1820 daughter board
