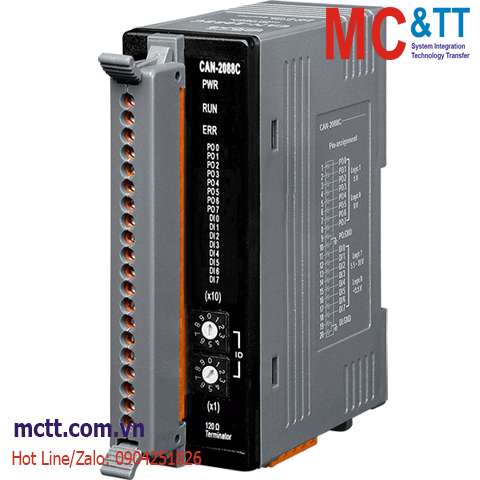

Module CANopen Slave 8 kênh HSC + 8 kênh đầu ra PWM ICP DAS CAN-2088C CR

Chia sẻ:
Mã sản phẩm: CAN-2088C
Thương hiệu: ICP DAS
Tình trạng:

CANopen Slave Module of 8-channel PWM Output, 8-channel High Speed Counter Input

Liên hệ
Mô tả

Module CANopen Slave 8 kênh HSC + 8 kênh đầu ra PWM ICP DAS CAN-2088C CR

Feature

  • Hardware-controlled PWM output
  • PWM output frequency: 0.2 Hz ~ 500 kHz with 0.1%~99.9% duty cycle
  • PWM Output Modes: software trigger / hardware trigger
  • Trigger each PWM output individually or all PWM outputs synchronously
  • Support Burst output mode and Continue output mode
  • Provide 32-bit 500 kHz high-speed counter for each DI channel
  • Pass the validation of CANopen conformance test
  • Provide EDS file for CANopen master interface

Introduction

PWM (Pulse width modulation) is a powerful technique for controlling analog circuits. It uses digital outputs to generate a waveform with variant duty cycle and frequency to control analog circuits. CAN-2088C is a PWM slave module of CANopen protocol. It has 8 PWM output channels and 8 high speed counter channels. It can be used to develop powerful and cost effective analog control system.

Application

Specifications

CPU Module
Watchdog Timer Hardware watchdog
LED Indicators
Status 3 LEDs to PWR, RUN and ERR
Digital Input
Channels 8
Type Wet Contact
Sink/Source (NPN/PNP) Sink
ON Voltage Level +5.5 ~ +30 VDC
OFF Voltage Level <3.5 VDC
Input Impedance 2.2 kΩ, 0.5 W
PWM
Channels 8
Sink/Source (NPN/PNP) Source
Load Current 1 mA
Frequency 0.2 Hz ~ 500 kHz (non-continuous)
Duty Cycle 0.1 ~ 99.9 %
Mode Burst mode, Continuous mode
Trigger Start Hardware (Start and Stop) or Software (Start and Stop)
CANopen
Baud Rate 10 k ~ 1 M
Isolation 3000 VDC for DC-to-DC, 2500 Vrms for photo-couple
Terminal Resistor Built-in 120Ω
Protocol CiA 301 v4.02, CiA 401 v2.1
Node ID 1 ~ 99
No. of PDOs 10 RxPDO , 10 TxPDO
PDO Mode Event Triggered, Remotely requested, Cyclic and acyclic SYNC
Error Control Node Guarding protocol / Heartbeat Producer
NMT Slave
EMCY Message Yes
Power
Consumption 3.5 W
Mechanical
Dimensions (mm) 33 x 99 x 78 ( W x L x H )
Installation DIN-Rail
Environment
Operating Temperature -25 ~ +75 °C
Storage Temperature -30 ~ +80 °C
Humidity 10 ~ 90% RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

CAN-2088C     CR  CANopen Slave Module of 8-channel PWM Output, 8-channel High Speed Counter Input (RoHS)
