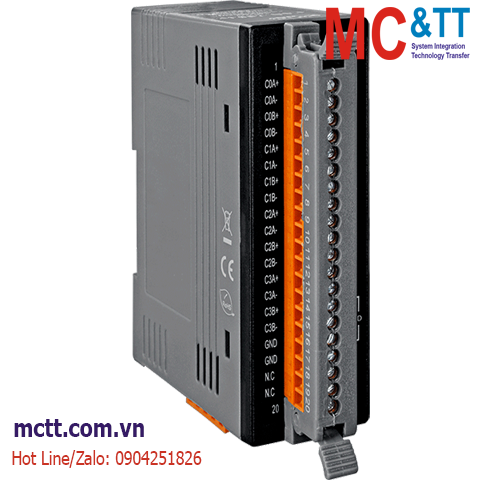

Module CANopen Slave 4/8 kênh Counter/Frequency ICP DAS CAN-2084C CR

Module CANopen Slave 4/8 kênh Counter/Frequency ICP DAS CAN-2084C CR

Feature

• NMT Slave
• 8-channel isolated/non-isolated input
• Provide 5 Counter modes
• Provide default EDS file
• ESD Protection 4KV Contact for each channel
• Support Power supply 10 ~30 VDC
• Support CiA-301 v4.02, CiA-401 v2.1
• Support PDO Mapping

Introduction

CANopen is one kind of the network protocols based on the CAN bus and mainly used for embedded network of machine control, such as industrial machine control , aircraft engines monitoring, factory automation, medical equipments control, remote data acquisition, environmental monitoring, and packaging machines control, etc. CAN-2084C module follows the CiA-301 version 4.02. CAN-2084C has passed the validation of the CiA CANopen conformance test tool. Therefore, you can use it with standard CANopen master easily by applying the EDS file. The CAN-2084C is a 4/8-channel Counter/Frequency module that provides “Up Counter”, "Frequency”, “Up/Down Counter”, “Dir/Pulse Counter” and “A/B Phase Counter” modes. It provides a variety of measurement applications, such as measuring a number of time-related quantities, counting events or totalizing and monitoring position with quadrature encoders. In addition, a digital filter is used to eliminate the effects of noise. By owing to the CANopen masters of ICP DAS, you can quickly build a CANopen network to approach your requirements.
