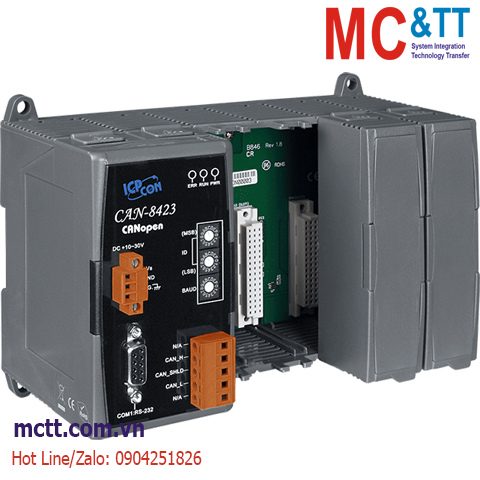

Module CANopen 4 khe cắm module I/O ICP DAS CAN-8423-G CR

Chia sẻ:
Mã sản phẩm: CAN-8423-G
Thương hiệu: ICP DAS
Tình trạng:

CANopen Remote I/O Unit with 4 I/O Slots

Liên hệ
Mô tả

Module CANopen 4 khe cắm module I/O ICP DAS CAN-8423-G CR

Feature

  • NMT : Slave
  • Error Control : Node Guarding and Heartbeat Producer protocol
  • No. of PDOs : 16Rx , 16Tx
  • PDO Modes : Event Triggered, Remotely requested, Cyclic and acyclic SYNC
  • PDO Mapping : Available
  • No. of SDOs : 1 server, 0 client
  • Emergency Message : yes
  • CANopen Version : DS-301 v4.02
  • Device Profile : DSP-401 v2.1
  • Node ID setting by Rotary Switch : yes
  • Produce EDS file Dynamically : yes

Introduction

CANopen, a kind of communication protocols, is based on the intelligent field bus (CAN bus). It was developed as a standardized embedded network with highly flexible configuration capabilities. It provides standardized communication objects for real-time data (Process Data Objects, PDO), configuration data (Service Data Objects, SDO), network management data (NMT message, and Error Control), and special functions (Time Stamp, Sync message, and Emergency message). By now, CANopen is used in many various application fields, such as medical equipment, off-road vehicles, maritime electronics, public transportation, building automation and etc.

CAN-8423 main control unit is specially designed for the slave device of CANopen protocol. It follows the CANopen Spec DS-301 V4.02 and DSP-401 V2.1, and supplies many features for users, such as dynamic PDO, EMCY object, error output value, SYNC cyclic and acyclic, … and etc. In order to expand I/O channel more flexible, an CAN-8423 supports up to 4 slots for I/O expansion and suits with a lot of ICP DAS DI / AI / DO / AO modules. User can choose DI/DO/AI/AO modules of I-87K series or I-8000 series to fit the customized practice applications. In addition, we also provide CAN-8423 Utility to allow users to create the EDS file dynamically. The EDS file is based on CANopen DSP-306 and can be compatible with different CANopen master interfaces. The application architecture is as follows.

Application

  • Industrial Machinery
  • Laboratory Equipment & Research
  • Restaurant Appliances
  • Maritime
  • Medical
  • Specialty Vehicles...etc.

Specifications

CPU Module
CPU 80186, 80 MHz or compatible
EEPROM 2 KB
Flash 512 KB
SRAM 512 KB
Real Time Clock Yes
Watchdog Timer Hardware watchdog
LED Indicators
Status PWR LED, RUN LED, ERR LED
I/O Expansion
Slots 4 slots
COM Ports
Ports 1 x RS-232 (console)
CANopen
Controller NXP SJA1000T with 16 MHz clock
Baud Rate 10 k ~ 1 M
Isolation 3000 VDC for DC-to-DC, 2500 Vrms for photo-couple
Terminal Resistor Built-in 120Ω
Protocol CiA 301 v4.02, CiA 401 v2.1
Node ID 1 ~ 255
No. of PDOs 32 RxPDO , 32 TxPDO
Error Control Node Guarding protocol / Heartbeat Producer
NMT Slave
EMCY Message Yes
Mechanical
Dimensions (mm) 188 x 132 x 91 (W x L x H)
Environment
Operating Temperature -25 ~ +75 °C
Storage Temperature -30 ~ +80 °C
Humidity 10 ~ 90% RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

CAN-8423-G     CR  CANopen Remote I/O Unit with 4 I/O Slots
