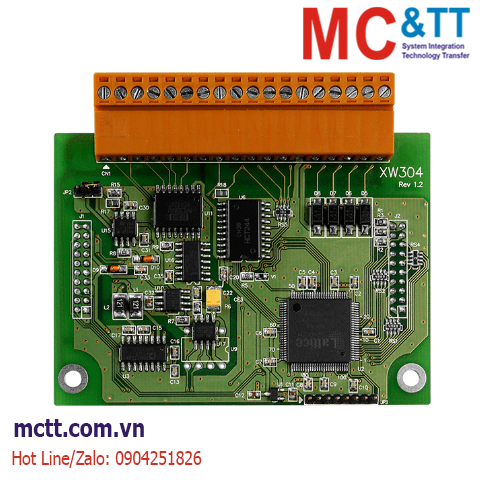

Card mở rộng 6 kênh AI + 1 kênh AO + 4 kênh DI + 4 kênh DO ICP DAS XW304 CR
The XW-board series are for uPAC-5000, LP-51xx, and WP-51xx series.
One PAC can only plug only one XW-board.
XW304 is a 6-channel Analog Input, 1-channel Analog Output, 4-channel Digital Output and 4-channel Digital Input XW-board.
Tính năng
- 6-ch Non-Isolated Voltage Input
- 1-ch Non-Isolated Voltage Output
- 4-ch Non-Isolated Digital Input
- 4-ch Non-Isolated Digital Output
Thông số kỹ thuật
| Analog Input |
| Channels |
6 |
| Range |
±5 V, 0 ~ +5 V |
| Resolution |
12-bit |
| Sampling Rate |
4 KHz |
| Input Impedance |
1 M Ohm |
| Overvoltage Protection |
± 30 VDC |
| Isolation |
non-isolated |
| Analog Output |
| Channels |
1 |
| Range |
± 5 V |
| Resolution |
12-bit |
| Voltage Output Capability |
20 mA |
| Isolation |
non-isolated |
| Digital Input |
| Channels |
4 |
| Type |
Dry Contact |
| ON Voltage Level |
Close to GND |
| OFF Voltage Level |
Open |
| Overvoltage Protection |
30 VDC |
| Digital Output |
| Channels |
4 |
| Type |
Open Collector |
| Sink/Source (NPN/PNP) |
Sink |
| Load Voltage |
+10 VDC ~ 40 VDC |
| Load Current |
200 mA/channel at 25 °C |
| Overload Protection |
1.4 A |
| Mechanical |
| Dimensions (mm) |
66 mm x 82 mm x 13 mm (W x L x H) |
| Environment |
| Operating Temperature |
-25 ~ +75 °C |
| Storage Temperature |
-30 °C ~ +75 °C |
| Humidity |
10 ~ 95% RH, Non-condensing |
Thông tin đặt hàng
| XW304 CR |
6-ch Voltage Input, 1-ch Voltage Output, 4-ch DI (Dry) and 4-ch DO (Sink, NPN, 10 ~ 40 VDC) Expansion Board (RoHS) |
