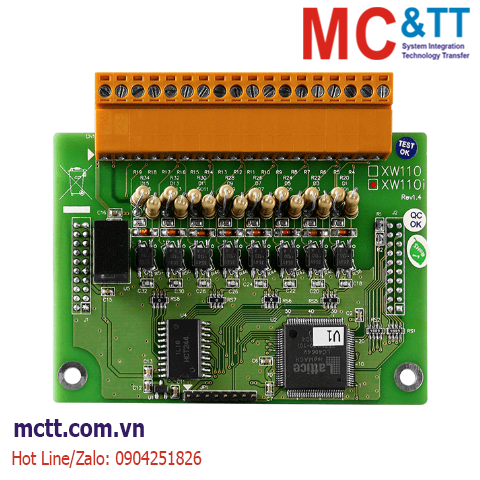

Card mở rộng 16 kênh đầu vào số DI ICP DAS XW110i CR
The XW-board series are for uPAC-5000, LP-51xx, and WP-51xx series.
One PAC can only plug only one XW-board.
XW110i is a 16-channel Isolation Digital Input XW-board
Tính năng
- 16-ch Isolated Digital Input
- Digital Input for Sink Type or Source Type
Thông số kỹ thuật
| Digital Input |
| Channels |
16 |
| Type |
Dry + Wet Contact |
| Sink/Source (NPN/PNP) |
Sink/Source |
| ON Voltage Level |
Dry: Close to GND
Wet: +10 VDC ~ +50 VDC |
| OFF Voltage Level |
Wet: +4 VDC max.
Dry: Open |
| Isolation |
3750 VDC |
| Input Impedance |
10 K Ohm |
| Overvoltage Protection |
60 VDC for Wet Contact |
| Mechanical |
| Dimensions (mm) |
66 mm x 82 mm x 17 mm (W x L x H) |
| Environment |
| Operating Temperature |
-25 ~ +75 °C |
| Storage Temperature |
-30 °C ~ +75 °C |
| Humidity |
10 ~ 95% RH, Non-condensing |
Thông tin đặt hàng
| XW110i CR |
16-ch Isolated DI (Dry/Wet) Expansion Board (RoHS) |
