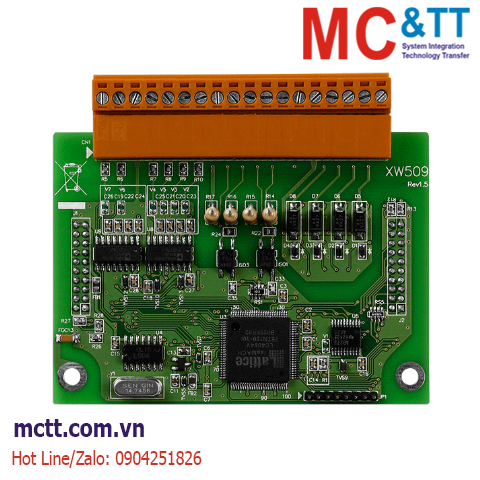

Card mở rộng 2 cổng RS-232 + 4 kênh DI + 4 kênh DO ICP DAS XW509 CR
The XW-board series are for uPAC-5000, LP-51xx, and WP-51xx series.
One PAC can only plug only one XW-board.
XW509 is a 2-port Non-Isolation RS-232 with 4-channel Isolation Digital Input and 4-channel Isolation Digital Output XW-board.
Tính năng
- 2-port Non-Isolation 5-wire RS-232
- Baud rates from 1,200 up to 115,200 bps
- 16C550 compatible
- Internal 16-byte Hardware FIFO for each Port
- 4-ch Isolated Digital Input
- Digital Input for Sink Type or Source Type
- 4-ch Isolated Digital Output
- Sink-type Digital Output
Thông số kỹ thuật
| Digital Input |
| Channels |
4 |
| Type |
Wet Contact |
| Sink/Source (NPN/PNP) |
Sink/Source |
| ON Voltage Level |
+10 VDC ~ +50 VDC |
| OFF Voltage Level |
+4 VDC Max. |
| Isolation |
3750 Vrms |
| Input Impedance |
10 K Ohm |
| Overvoltage Protection |
60 VDC |
| Digital Output |
| Channels |
4 |
| Type |
Open Collector |
| Sink/Source (NPN/PNP) |
Sink |
| Load Voltage |
+10 VDC ~ +40 VDC |
| Load Current |
200 mA/channel at 25 °C |
| Overload Protection |
1.4 A |
| Isolation |
3750 Vrms |
| COM Ports |
| Ports |
RS-232 x 2 |
| Parity |
None, Even, Odd, Mark, Space |
| Data Bit |
5, 6, 7, 8 |
| Stop Bit |
1, 1.5, 2 |
| FIFO Size |
16 bytes |
| Power |
| Consumption |
0.5 W Max. |
| Mechanical |
| Dimensions (mm) |
66 mm x 82 mm x 17 mm (W x L x H) |
| Environment |
| Operating Temperature |
-25 ~ +75 °C |
| Storage Temperature |
-30 °C ~ +75 °C |
| Humidity |
10 ~ 95% RH, Non-condensing |
Thông tin đặt hàng
| XW509 CR |
2-port Non-Isolated RS-232, 4-ch Isolated DI (Wet) and 4-ch Isolated DO (Sink, NPN, 10 ~ 40 VDC) Expansion Board (RoHS) |
