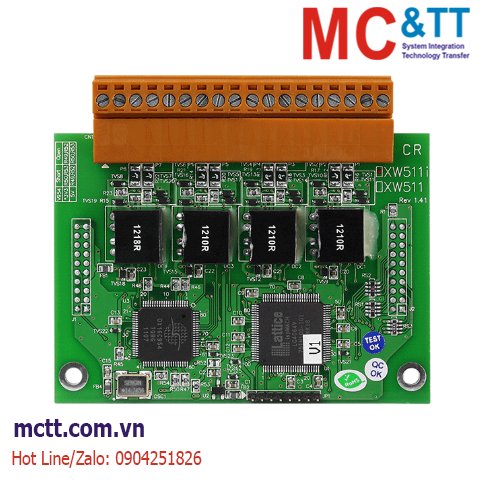

Card mở rộng 4 cổng RS-485 ICP DAS XW511i CR
XW511i is a RS-485 port expansion board for use with uPAC-50xx and WP-51xx series controllers. XW511i provides 4 isolated RS-485 serial ports that have 128-byte FIFO buffers and support communication speeds up to 115,200 bps.
In the harsh industrial environment, the onboard ESD protection devices can divert this potentially damaging charge away from sensitive circuitry and protect the XW511i from permanent damage. The serial communication modules are designed for use with intelligent devices like bar code readers, intelligent sensors, instrumentation equipment, computers, and almost any device with an RS-485 port.
Tính năng
- 4-port RS-485 Expansion
- Baud Rate 115200 bps (Max) Supports
- Isolation 2500 Vrms
Thông số kỹ thuật
| COM Ports |
| Ports |
4 x RS-485 |
| Baud Rate |
115200 bps Max. |
| Parity |
None, Even, Odd, Mark, Space |
| Data Bit |
5, 6, 7, 8 |
| Stop Bit |
1, 1.5, 2 |
| FIFO Size |
128 bytes |
| Isolation |
Yes |
| Mechanical |
| Dimensions (mm) |
66 mm x 82 mm x 14 mm (W x L x H) |
| Environment |
| Operating Temperature |
-25 ~ +75 °C |
| Storage Temperature |
-30 °C ~ +75 °C |
| Humidity |
10 ~ 95% RH, Non-condensing |
Thông tin đặt hàng
| XW511i CR |
4-port Isolated RS-485 Expansion Board (RoHS) |
