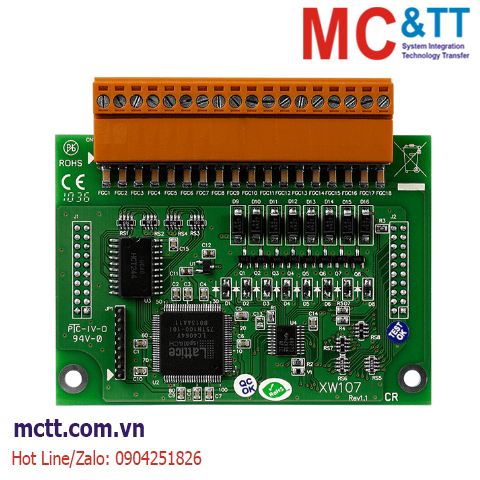

Card mở rộng 8 kênh DI + 8 kênh DO ICP DAS XW107 CR
The XW-board series are for uPAC-5000, LP-51xx, and WP-51xx series.
One PAC can only plug only one XW-board.
XW107 is a 8-channel Non-Isolation Digital Input and 8-channel Non-Isolation Digital Output XW-board
Tính năng
- 8-ch Non-Isolated Digital Input
- Source-type Digital Input
- 8-ch Non-Isolated Digital Output
- Sink-type Digital Output
Thông số kỹ thuật
| Digital Input |
| Channels |
8 |
| Type |
Dry Contact |
| Sink/Source (NPN/PNP) |
Source |
| ON Voltage Level |
Close to GND |
| OFF Voltage Level |
Open |
| Overvoltage Protection |
30 VDC |
| Digital Output |
| Channels |
8 |
| Type |
Open Collector |
| Sink/Source (NPN/PNP) |
Sink |
| Load Voltage |
+10 VDC ~ 30 VDC |
| Load Current |
100 mA/channel at 25 °C |
| Overload Protection |
1.4 A |
| Mechanical |
| Dimensions (mm) |
66 mm x 82 mm x 13 mm (W x L x H) |
| Environment |
| Operating Temperature |
-25 ~ +75 °C |
| Storage Temperature |
-30 °C ~ +75 °C |
| Humidity |
10 ~ 95% RH, Non-condensing |
Thông tin đặt hàng
| XW107 CR |
8-ch Non-Isolated DI (Dry) and 8-ch Non-Isolated DO (Sink, NPN, 10 ~ 30 VDC) Expansion Board (RoHS) |
